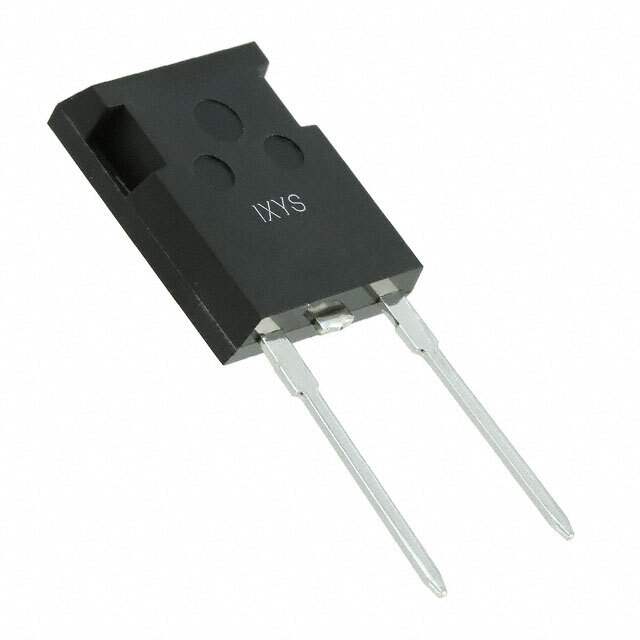

DSEP30-06BR Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer IXYS
Packaging Tube/Rail
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 600V
Current - Average Rectified (Io) 30A
Voltage - Forward (Vf) (Max) @ If 2.51V @ 30A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 30ns
Current - Reverse Leakage @ Vr 250μA @ 600V
Mounting Through Hole
Case / Package ISOPLUS247
Operating Temperature - Junction -55°C to 175°C
Win Source Part Number 014898-DSEP30-06BR
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian DSEP30-06BR CAD Model

Description

Description of DSEP30-06BR

Designed for superior rectification performance, the DSEP30-06BR is a diode module that offers exceptional efficiency and reliability. It is well-suited for use in a range of demanding applications, featuring advanced design elements that promote long-lasting operation.

Features and Benefits

  • Optimized switching characteristics for reduced loss.
  • High surge handling capability, ensuring robustness in harsh conditions.
  • Protected against thermal overload for increased durability.
  • Environmentally resistant packaging for varied installation needs.

Applications

  • Power factor correction
  • Voltage regulation systems
  • Battery management systems
  • Telecommunications power supplies
  • Automotive power inverters
