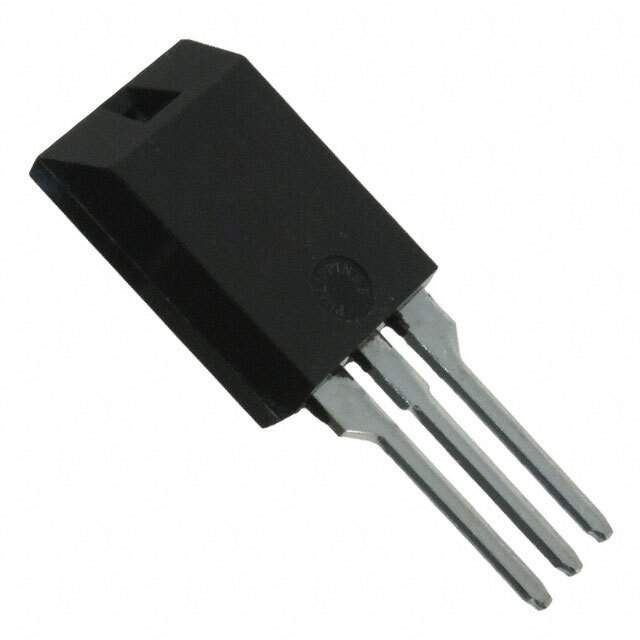

DSEE29-12CC Real Image
Same model may have multiple batches, images only for reference.

DSEE29-12CC

Part No DSEE29-12CC
Manufacturer IXYS
Catalog Diodes, Rectifiers - Arrays
Description High Performance Fast Recovery Diode Low Loss and Soft Recovery Phase leg
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer IXYS
Series HiPerDynFRED
Packaging Tube
Diode Configuration 1 Pair Series Connection
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 600V
Current - Average Rectified (Io) (per Diode) 30A
Voltage - Forward (Vf) (Maximum) @ If 1.62V @ 30A
Speed Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 35ns
Current - Reverse Leakage @ Vr 500μA @ 600V
Operating Temperature - Junction -55°C ~ 175°C
Mounting Style Through Hole
Package ISOPLUS220
Manufacturer Package ISOPLUS220
Win Source Part Number 1169814-DSEE29-12CC
Manufacturer Homepage www.ixys.com
Popularity Medium
Supply and Demand Status Limited
Family Name DSEE29-12CC
Introduction Date August 08, 2003
ECCN EAR99
Country of Origin Republic of Korea
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian DSEE29-12CC CAD Model

Description

The DSEE29-12CC is a HiPerDynFRED diode manufactured by IXYS.

  • Manufacturer: IXYS
  • Product: DSEE29-12CC
  • Connection: 1 pair series connection
  • Maximum Voltage Forward: 1.62V @ 30A
  • Maximum DC Reverse Voltage: 600V
  • Reverse Recovery Time: 35ns
  • Current Reverse Leakage @ Vr: 500μA @ 600V
  • Ideal for Use in: various electronic applications that require a fast recovery diode
