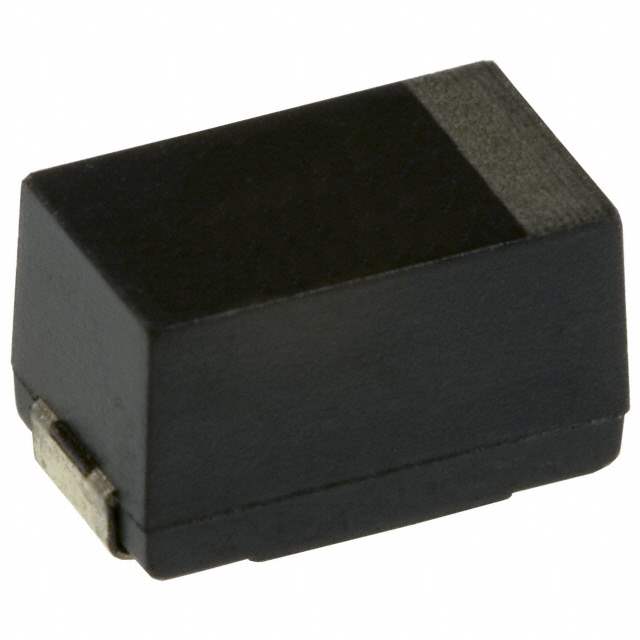

EEF-SE0D561R Real Image
Same model may have multiple batches, images only for reference.

EEF-SE0D561R

Part No EEF-SE0D561R
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 560UF 20% 2V SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Type Polymer
Capacitance 560μF
Tolerance ±20%
Voltage Rating 2V
ESR 5 mOhm
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -40°C to 105°C
Applications General Purpose
Height - Seated (Max) 0.165" (4.20mm)
Surface Mount Land Size 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting SMD (SMT)
Dimension 2917 (7343 Metric)
Win Source Part Number 112206-EEF-SE0D561R
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian EEF-SE0D561R CAD Model

Description

Overview:

The EEF-SE0D561R is a high-performance solid electrolytic capacitor known for its reliability and efficiency in demanding electronic circuits. It offers a low ESR (Equivalent Series Resistance), making it suitable for applications requiring high ripple current handling.

Features and Benefits:

  • Long lifespan and high reliability.
  • Low ESR for enhanced efficiency.
  • Compact size suitable for space-constrained designs.
  • Wide temperature range operation.

Applications:

  • Power supplies and converters.
  • Industrial electronics.
  • Telecommunications equipment.
  • Automotive electronics.
