Same model may have multiple batches, images only for reference.

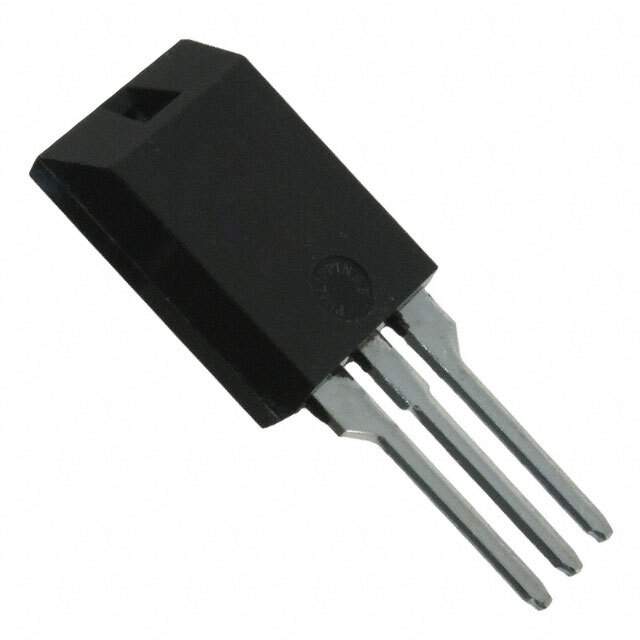

DSEE15-06CC Real Image
Same model may have multiple batches, images only for reference.

DSEE15-06CC

Part No DSEE15-06CC
Manufacturer IXYS
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY 600V 15A ISOPLUS220 / Diode Array 1 Pair Series Connection Standard 600 V 15A Through Hole ISOPLUS220™
Datasheet
DSEE15-06CC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr IXYS
Series HiPerDynFRED™
Package Tube
Diode Configuration 1 Pair Series Connection
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 600 V
Current - Average Rectified (Io) (per Diode) 15A
Voltage - Forward (Vf) (Max) @ If 1.7 V @ 15 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 30 ns
Current - Reverse Leakage @ Vr 100 µA @ 600 V
Operating Temperature - Junction -55°C ~ 175°C
Mounting Type Through Hole
Package / Case ISOPLUS220™
Supplier Device Package ISOPLUS220™
Base Product Number DSEE15
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Standard Package 50
Win Source Part Number 1183463-DSEE15-06CC
Ultra Librarian 3D Model Ultra Librarian DSEE15-06CC CAD Model

Description

The DSEE15-06CC is a HiPerDynFRED™ rectifier diode array from IXYS.

  • Package: Tube
  • Standard Package: 50
  • Maximum Reverse Voltage: 600V
  • Forward Voltage: 1.7V @ 15A
  • Reverse Recovery Time: 30ns
  • Current Reverse Leakage @ Maximum Reverse Voltage: 100µA
  • Diode Configuration: 1 pair series connection
  • Average Rectified Current: 15A per diode
  • ECCN: EAR99
  • Operating Temperature: -55°C to 175°C
