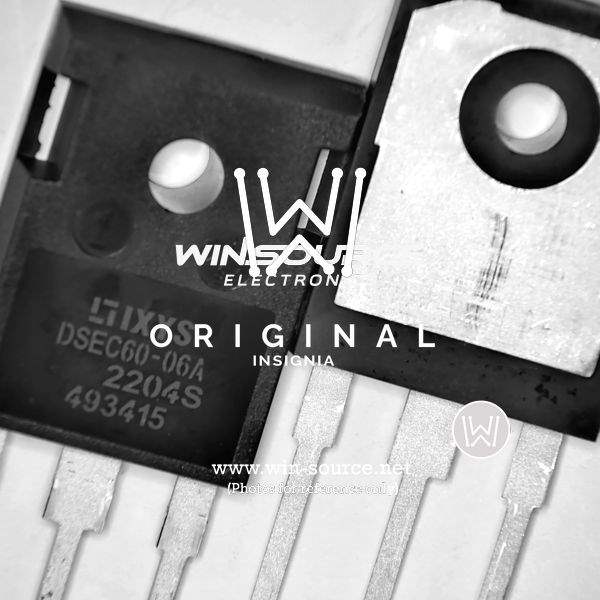

DSEC60-06A Real Image DSEC60-06A Real Image
Same model may have multiple batches, images only for reference.
DSEC60-06A Real Image DSEC60-06A Real Image
DSEC60-06A Real Image DSEC60-06A Real Image
Same model may have multiple batches, images only for reference.

DSEC60-06A

Part No DSEC60-06A
Manufacturer IXYS
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY GP 600V 30A TO247AD
Datasheet
DSEC60-06A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer IXYS
Packaging Tube/Rail
Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 600V
Current - Average Rectified (Io) (per Diode) 30A
Voltage - Forward (Vf) (Max) @ If 1.6V @ 30A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 35ns
Current - Reverse Leakage @ Vr 250μA @ 600V
Operating Temperature - Junction -55°C to 175°C
Mounting Through Hole
Case / Package TO-247AD
Win Source Part Number 1035185-DSEC60-06A
Family Name DSEC60-06A
Introduction Date October 30, 2000
ECCN EAR99
Estimated EOL Date 2023
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Automotive, Computers & Computer Peripherals, Communications & Networking, Consumer Electronics, Lighting, Sensing & Instrumentation, Industrial
Ultra Librarian 3D Model Ultra Librarian DSEC60-06A CAD Model

Description

IXYS DSEC60-06A is a through-hole mounting standard diode type device.

  • Maximum DC Reverse Voltage: 600V
  • Voltage Forward: 1.6V @ 30A
  • Current Reverse Leakage: 250μA @ 600V
  • Current Average Rectified (Io) (Per Diode): 30A
  • Diode Configuration: 1 Pair Common Cathode
  • Speed (Frequency): Fast Recovery = 200mA (Io)
  • Suitable for: Discrete Semiconductor Products
  • Applications: Automotive, computers & computer peripherals, communications & networking, consumer electronics, lighting, sensing & instrumentation, and industrial applications.
