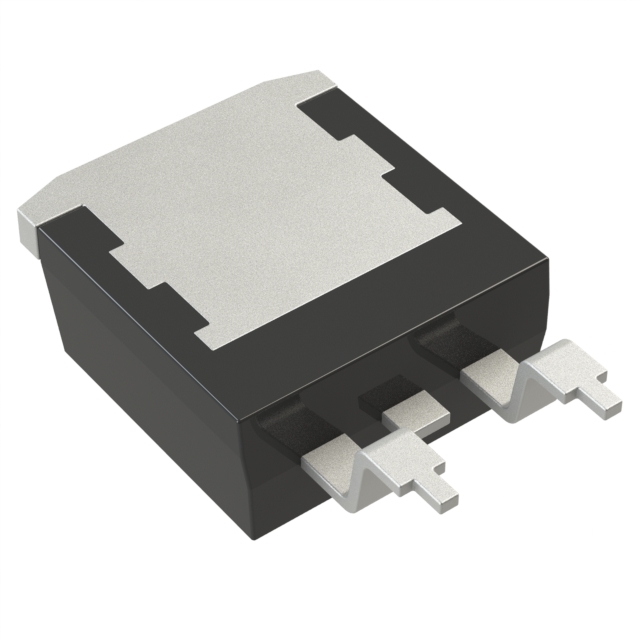

Same model may have multiple batches, images only for reference.
CS19-08HO1S-TRL IXYS – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

CS19-08HO1S-TRL

Part No CS19-08HO1S-TRL
Manufacturer IXYS
Catalog SCRs - Single
Description SCR 800 V 29 A Standard Recovery Surface Mount TO-263AA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer IXYS
Packaging Reel - TR
Voltage - Off State 800 V
Voltage - Gate Trigger (Vgt) (Max) 1.5 V
Current - Gate Trigger (Igt) (Max) 28 mA
Voltage - On State (Vtm) (Max) 1.6 V
Current - On State (It (AV)) (Max) 13 A
Current - On State (It (RMS)) (Max) 29 A
Current - Hold (Ih) (Max) 50 mA
Current - Off State (Max) 5 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 160A, 180A
SCR Type Standard Recovery
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package TO-263AA
Base Product Number CS19
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.30.0080
Win Source Part Number 1480271-CS19-08HO1S-TRL
Ultra Librarian 3D Model Ultra Librarian CS19-08HO1S-TRL CAD Model
