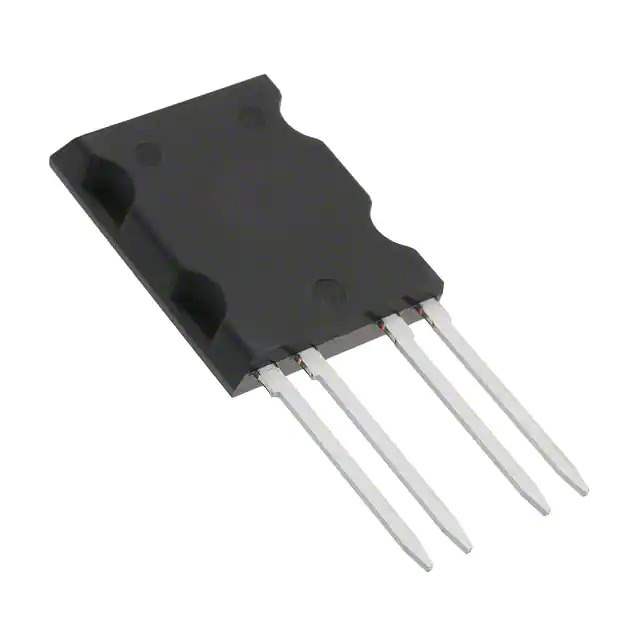

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr IXYS
Series CPC, OptoMOS®
Package Tube
Product Status Active
Mounting Type Through Hole
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Voltage - Input 1.2VDC
Voltage - Load 0 V ~ 600 V
Load Current 1.4 A
On-State Resistance (Max) 750 mOhms
Termination Style PC Pin
Package / Case ISOPLUS264™
Supplier Device Package ISOPLUS264™
Base Product Number CPC1979
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
California Prop 65 Warning Information
Win Source Part Number 580158-CPC1979J
Ultra Librarian 3D Model Ultra Librarian CPC1979J CAD Model

Description

The CPC1979J is a solid state relay from the CPC series, also known as OptoMOS.

  • Series: CPC, OptoMOS
  • Type: Solid State Relay
  • Configuration: Single-Pole, Single-Throw Normally Open (SPST-NO)
  • Termination Style: PC Pin
  • Input Voltage: 1.2VDC
  • Output Type: AC/DC
  • On-State Resistance (Max): 750 mOhms
  • Load Current (Max): 1.4A
  • Load Voltage Range: 0V to 600V
  • Package Type: ISOPLUS264™
  • Mounting: Through-Hole
  • Status: Active
  • Compliance: California Prop 65
