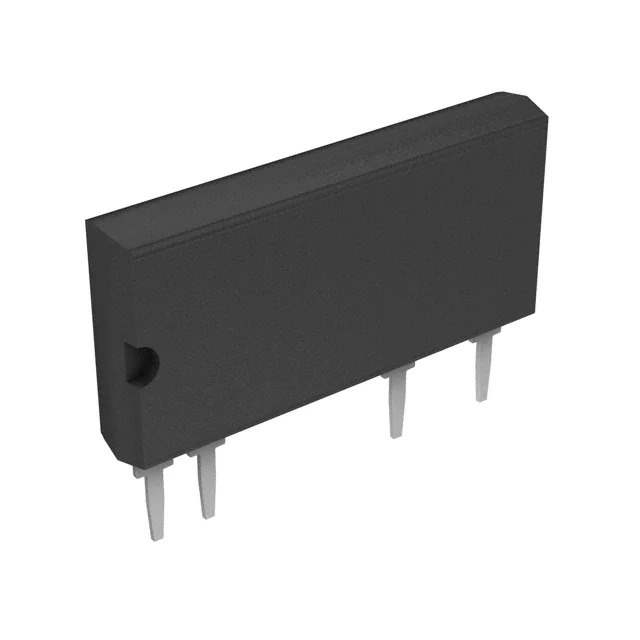

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr IXYS
Series CPC, OptoMOS®
Package Tube
Product Status Active
Mounting Type Through Hole
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Voltage - Input 1.2VDC
Voltage - Load 0 V ~ 400 V
Load Current 350 mA
On-State Resistance (Max) 5 Ohms
Termination Style PC Pin
Package / Case 8-SIP, 4 Leads
Supplier Device Package 4-SIP
Base Product Number CPC1973
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.49.0055
California Prop 65 Warning Information
Win Source Part Number 580154-CPC1973Y
Ultra Librarian 3D Model Ultra Librarian CPC1973Y CAD Model

Description

The CPC1973Y is a solid state relay from the CPC series by IXYS.

  • Series: CPC
  • Termination Style: PC Pin
  • Package: Tube
  • Voltage Input: 1.2VDC
  • Output Type: AC/DC
  • Configuration: SPST-NO
  • On-State Resistance: 5 Ohms
  • Load Current: 350 mA
  • Voltage: 0V to 400V
  • Mounting Type: Through Hole
  • Package/Case: 8-SIP, 4 Leads
  • Product Status: Active
  • Standard Package: 25 pcs
