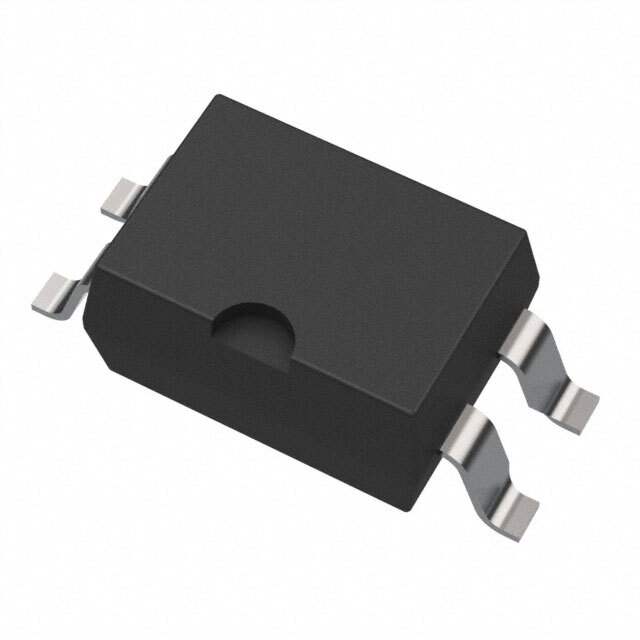

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr IXYS
Series CPC, OptoMOS®
Package Tube
Product Status Active
Mounting Type Surface Mount
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Voltage - Input 1.2VDC
Voltage - Load 0 V ~ 350 V
Load Current 120 mA
On-State Resistance (Max) 30 Ohms
Termination Style Gull Wing
Package / Case 4-SMD (0.300", 7.62mm)
Supplier Device Package 4-SMD
Base Product Number CPC1330
Standard Package 100 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
California Prop 65 Warning Information
Win Source Part Number 580126-CPC1330GR
Ultra Librarian 3D Model Ultra Librarian CPC1330GR CAD Model

Description

The CPC1330GR is a solid-state relay designed for various applications.

  • Voltage Input: It operates with a voltage input of 1.2VDC and offers both AC and DC output types.
  • Circuit Configuration: With a SPST-NO (1 Form A) circuit configuration, it provides reliable switching capabilities.
  • On-State Resistance: The CPC1330GR has a low on-state resistance of 30 Ohms and can handle a load current of up to 120 mA.
  • Mounting: It is surface mountable and comes in a 4-SMD package.
  • Series: This product is part of the CPC and OptoMOS series, ensuring high-quality performance.
  • Packaging: The CPC1330GR is supplied in a tube packaging with 100 pieces.
  • Status: It is an active product and is unaffected by REACH regulations.
