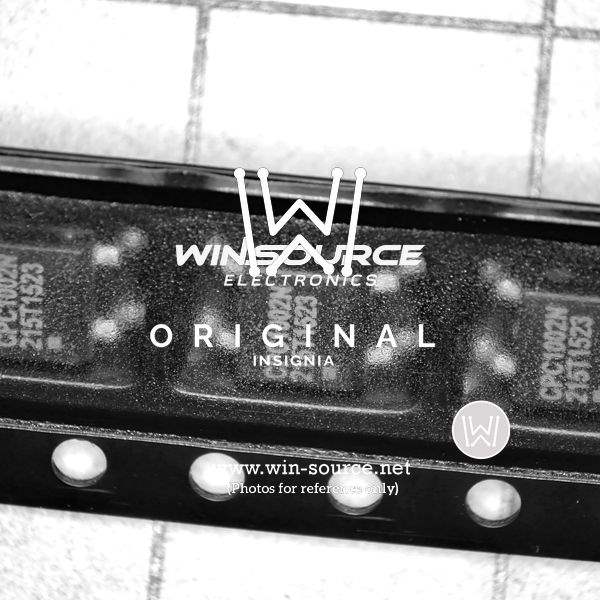

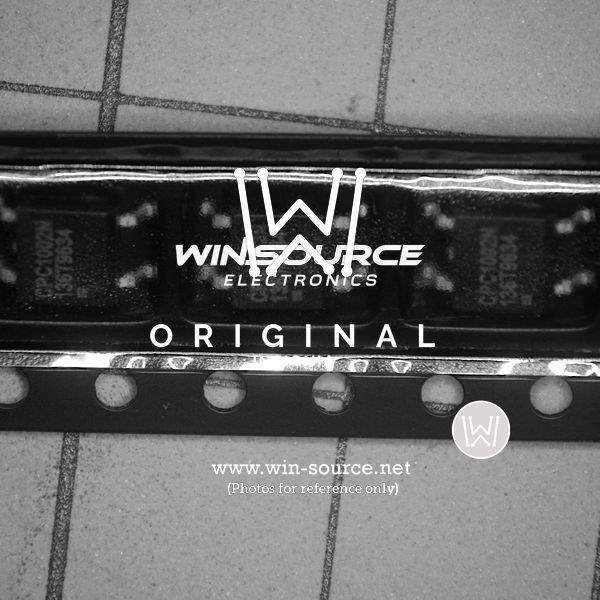

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr IXYS
Series CPC, OptoMOS®
Package Tube
Product Status Active
Mounting Type Surface Mount
Circuit SPST-NO (1 Form A)
Output Type DC
Voltage - Input 1.2VDC
Voltage - Load 0 V ~ 60 V
Load Current 700 mA
On-State Resistance (Max) 550 mOhms
Termination Style Gull Wing
Package / Case 4-SOP (0.150", 3.81mm)
Supplier Device Package 4-SOP
Base Product Number CPC1002
Standard Package 100 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
California Prop 65 Warning Information
Win Source Part Number 580095-CPC1002N
Ultra Librarian 3D Model Ultra Librarian CPC1002N CAD Model

Description

The CPC1002N is a solid-state relay from the CPC series, designed for use in various electronic applications. It features a gull wing termination style and comes in a surface mount package. The relay has a voltage input of 1.2VDC and offers a DC output type. With a SPST-NO (1 Form A) circuit configuration, it has a maximum on-state resistance of 550 mOhms and a load current of 700 mA. The voltage load range is from 0 V to 60 V.

  • Description: This solid-state relay is suitable for use in electronic devices that require reliable switching and control of low voltage loads.
  • Package: 100 pcs standard
  • Status: Active
