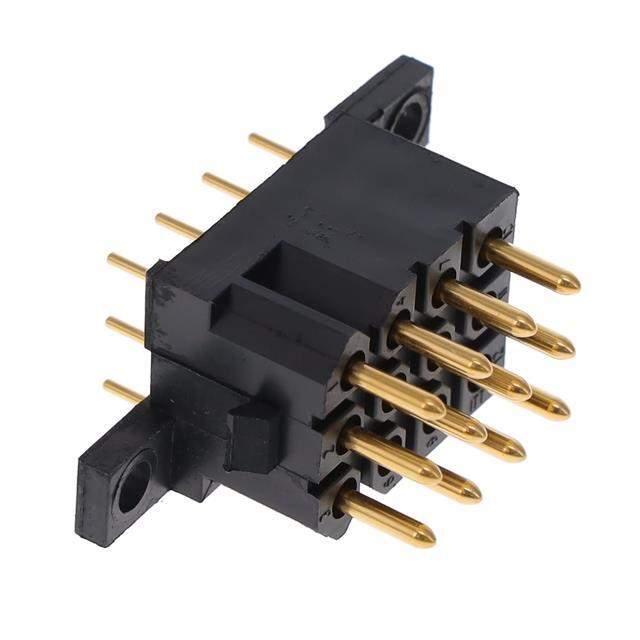

TST12RB01Z Real Image
Same model may have multiple batches, images only for reference.

TST12RB01Z

Part No TST12RB01Z
Manufacturer ITT Cannon, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 12POS 5.08MM / Connector Header Through Hole 12 position 0.200" (5.08mm)
Datasheet
TST12RB01Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr ITT Cannon, LLC
Series Trident Rectangular
Package Bulk
Connector Type Receptacle
Contact Type Male Pin
Pitch - Mating 0.200" (5.08mm)
Number of Positions 12
Number of Rows 4
Row Spacing - Mating 0.200" (5.08mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Unshrouded
Mounting Type Through Hole
Termination Solder
Fastening Type Latch Holder
Contact Length - Post 0.224" (5.70mm)
Insulation Height 0.531" (13.50mm)
Contact Shape Circular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating Flash
Insulation Material Polyamide (PA), Nylon
Features Mounting Flange
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 13A
Voltage Rating 250V
Applications Automotive, Industrial
Base Product Number TST12
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 192991-0302PG,192991-0302PG-ND,192991-0302,1929910302,192991-0302-ND
Standard Package 1
Win Source Part Number 1186552-TST12RB01Z
Ultra Librarian 3D Model Ultra Librarian TST12RB01Z CAD Model

Description

The ITT Cannon, LLC TST12RB01Z is a 12-position board-to-cable/wire connector with a mounting flange.

  • Contact Gender: male pin receptacle
  • Pitch: 0.200”
  • Maximum Voltage: 250V
  • Current: 13A
  • Termination: solder
  • Fastening Type: latch holder
  • Insulation Material: polyamide (PA), nylon
  • Flammability Rating: UL94 V-0
  • Temperature Range: -40°C to 105°C
