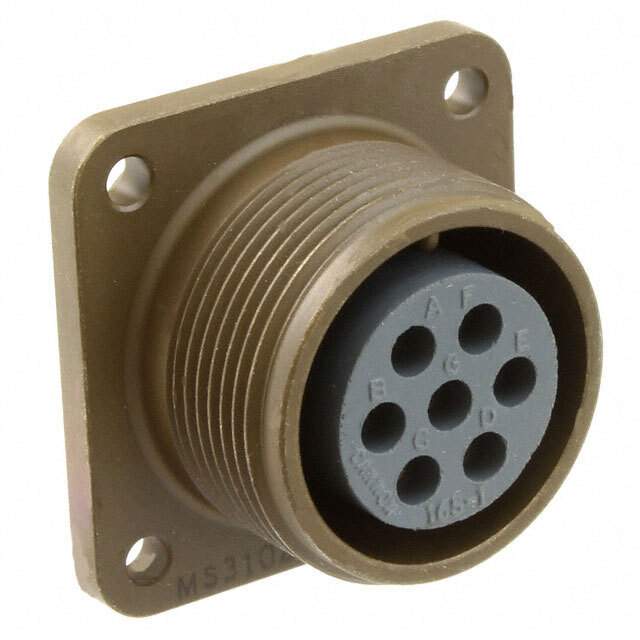

MS3102R16S-1S Real Image
Same model may have multiple batches, images only for reference.

MS3102R16S-1S

Part No MS3102R16S-1S
Manufacturer ITT Cannon, LLC
Catalog Circular Connectors
Description CONN RCPT FMALE 7P SOLDER CUP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 12 Weeks
Features 7 Position Circular Connector Receptacle, Female Sockets Solder Cup
Manufacturer ITT Cannon, LLC
Series Military, MIL-DTL-5015, MS
Package Bulk
Operating Temperature Range -55°C ~ 125°C
Mounting Panel Mount
Family Name MS3102R16
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4020
Other Part Number 024250-0002 R, 1200-1247, 1200-1247-MIL, IMS3102R16S-1S, IMS3102R16S-1S-ND, MS3102R16S1S
Quantity per package 1
Popularity High
Supply and Demand Status Balance
Win Source Part Number 928129-MS3102R16S-1S
Ultra Librarian 3D Model Ultra Librarian MS3102R16S-1S CAD Model

Description

The ITT Cannon, LLC 928129-MS3102R16S-1S is a military series connector with 7 position circular connector receptacle and female sockets solder cup.

  • Compliance: RoHS compliant
  • Supply and Demand: balanced
  • Series: Military
  • Positions: 7
  • Connector Type: Receptacle
