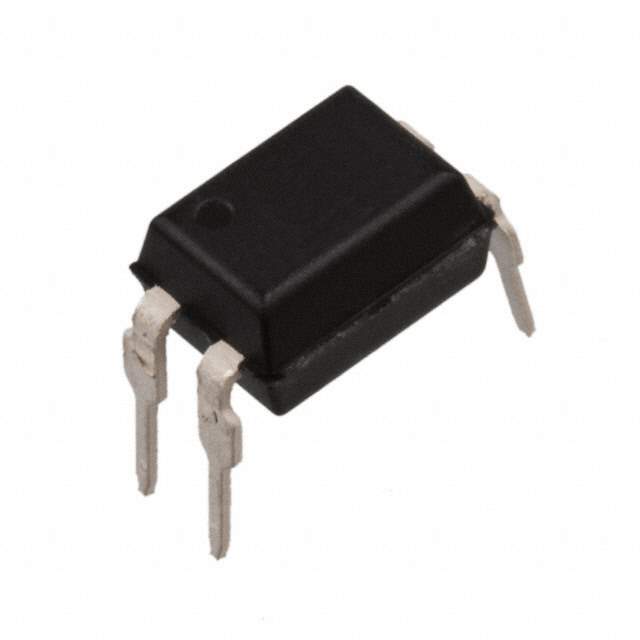

The Isocom Components 2004 LTD 097860-TLP621XGB is a Transistor Output Optoisolator that comes in a Tube/Rail package.

• Mounting Style: It has a Through Hole Mounting Style and a DC Input Type.
• Min DC Current Transfer Ratio: The optoisolator has a Minimum DC Current Transfer Ratio of 100% @ 5mA.
• Max DC Current Transfer Ratio: The optoisolator has a Maximum DC Current Transfer Ratio of 600% @ 5mA.
• Rise and Fall Time: It has a Rise and Fall Time of 2μs, 3μs.
• Switching Turn-On and Turn-Off Time: a Switching Turn-On and Turn-Off Time of 3μs, 3μs.
• Output Type: The output type is a transistor with a Maximum Voltage Output of 55V.
• Vce Saturation (Max): a Vce Saturation (Max) of 400mV.
• Voltage - Isolation: The optoisolator has a Voltage - Isolation of 5300Vrms.
• Operating Temperature Range: operates within an Operating Temperature Range of -55°C to 100°C.
• Supply and Demand Status: The supply and demand status is sufficient.
