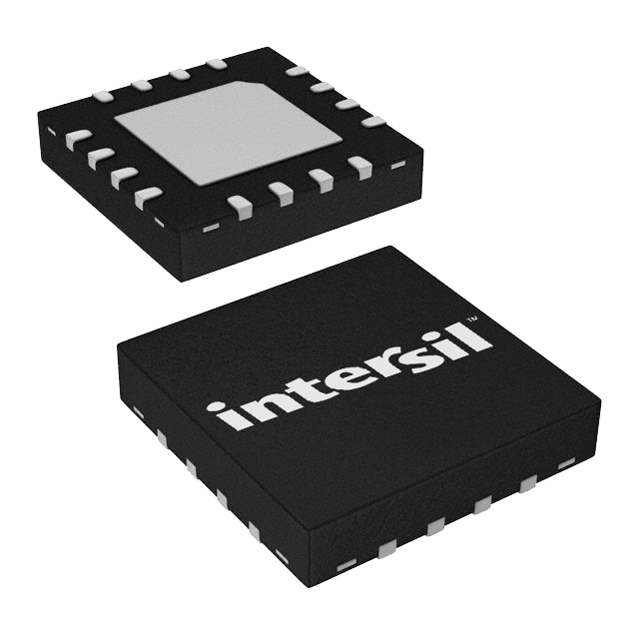

ISL97692IRTZ Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Intersil
Packaging Tube/Rail
Status Active
Type DC DC Regulator
Topology Step-Up (Boost)
Internal Switch(s) Yes
Number of Outputs 4
Operating Input Voltage(Min) 2.4V
Maximum Supply Voltage 5.5V
Output Voltage 26V
Channel Output Current 40mA
Frequency 400kHz to 1.5MHz
Dimming PWM
Applications Backlight
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 16-TQFN (3x3)
Win Source Part Number 109103-ISL97692IRTZ
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ISL97692IRTZ CAD Model

Description

The Intersil DC DC regulator is a step-up (boost) type with four outputs.

  • Frequency Range: 400kHz to 1.5MHz
  • Switch: Internal
  • Mounting: SMD (SMT)
  • Packaging: Tube/rail
  • Dimming: PWM
  • Output Voltage: 26V
  • Category: Integrated Circuits
  • Status: Active
  • Temperature Range - Operating: -40°C to 85°C (TA)
  • Case / Package: 16-TQFN (3x3)
  • Maximum Supply Voltage: 5.5V
  • Operating Input Voltage (min): 2.4V
  • Channel Output Current: 40mA
  • Popularity: Medium
  • Supply and Demand Status: Balanced
