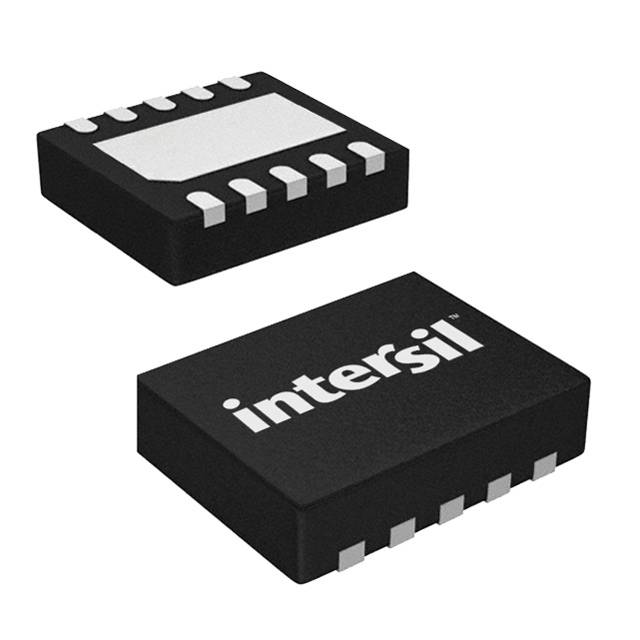

ISL84684IRZ Intersil
Same model may have multiple batches, images only for reference.

ISL84684IRZ

Part No ISL84684IRZ
Manufacturer Intersil
Catalog Interface - Analog Switches, Multiplexers, Demultiplexers
Description IC SWITCH DUAL SPDT 10TDFN
Datasheet
ISL84684IRZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Intersil
Packaging Tube/Rail
Status Active
Switch Circuit SPDT
Number of Circuits 2
Max On Resistance 500 mOhm
Channel-to-Channel Matching (ΔRon) 55 mOhm
Single Supply Voltage (V+) 1.65 V to 3.6 V
Max Switch Time (Ton,Toff) 50ns, 27ns
Charge Injection 94pC
Channel Capacitance(CS off, CD off) 65pF
Max Leakage Current (IS off) 4nA
Crosstalk -85dB @ 100kHz
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 10-TDFN (3x3)
Win Source Part Number 070127-ISL84684IRZ
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ISL84684IRZ CAD Model

Description

Intersil's ISL84684IRZ is a SPDT switch circuit integrated circuit.

  • Manufacturer: Intersil
  • Win Source Part Number: 070127
  • Packaging: Tube/Rail
  • Number of circuits: 2
  • Charge injection: 94pC
  • Crosstalk: -85dB @ 100kHz
  • Channel-to-channel matching (ΔRon): 55 mOhm
  • Maximum on resistance: 500 mOhm
  • Case/Package: 10-TDFN (3x3)
  • Single supply voltage (V+): 1.65 V to 3.6 V
  • Maximum switch time (Ton,Toff): 50ns, 27ns
  • Channel capacitance (CS off, CD off): 65pF
  • Maximum leakage current (IS off): 4nA
  • Supply and demand status: balanced
