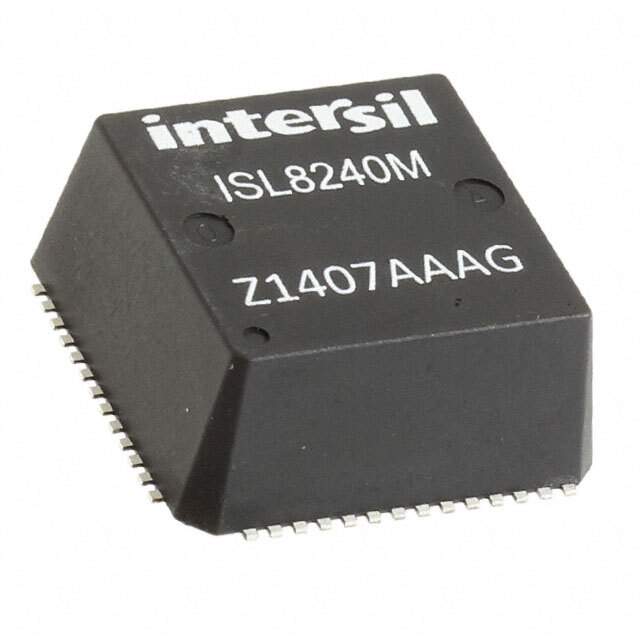

Same model may have multiple batches, images only for reference.

ISL8240MIRZ

Name: ISL8240MIRZ
Brand: Intersil
SKU: 777431
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	ISL8240MIRZ
Manufacturer	Intersil
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC/DC CONVERTER 2X 0.6-2.5V 100W / Module DC-DC 1-OUT 0.6V to 2.5V 40A 26-Pin QFN EP Tray
Datasheet	ISL8240MIRZ Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Power Supplies - Board Mount
Manufacturer	Intersil
Packaging	Tube
Type	Non-Isolated PoL Module
Number of Outputs	2
Input Voltage MIN	4.5V
Voltage Input MAX	20V
Voltage - Output 1	0.6 ~ 2.5 V
Voltage - Output 2	0.6 ~ 2.5 V
Current - Output (Maximum)	20A, 20A
Applications	ITE (Commercial)
Features	OCP, OTP, OVP
Operating Temperature Range	-40°C ~ 125°C
Efficiency	94%
Mounting	SMD
Package	26-PowerBQFN Module
Dimension	0.67" L x 0.67" W x 0.30" H (17.0mm x 17.0mm x 7.5mm)
Manufacturer Package	26-QFN (17x17)
Win Source Part Number	777431-ISL8240MIRZ
Popularity	Medium
Supply and Demand Status	Limited
Family Name	ISL8240M
Introduction Date	March 12, 2014
ECCN	EAR99
Country of Origin	United States of America
Estimated EOL Date	2028
Ultra Librarian 3D Model	Ultra Librarian ISL8240MIRZ CAD Model

Alternative Products

Description

The Intersil ISL8240MIRZ is a non-isolated PoL module from Intersil.

Package: 26-PowerBQFN module
Operating Temperature: -40°C to 125°C
Features: OCP, OTP, OVP
Outputs: 2
Output Voltage: 0.6V to 2.5V
Efficiency: 94%
Applications: ITE (Commercial)
Category: Power Supplies - Board Mount
Supply and Demand Status: Limited
