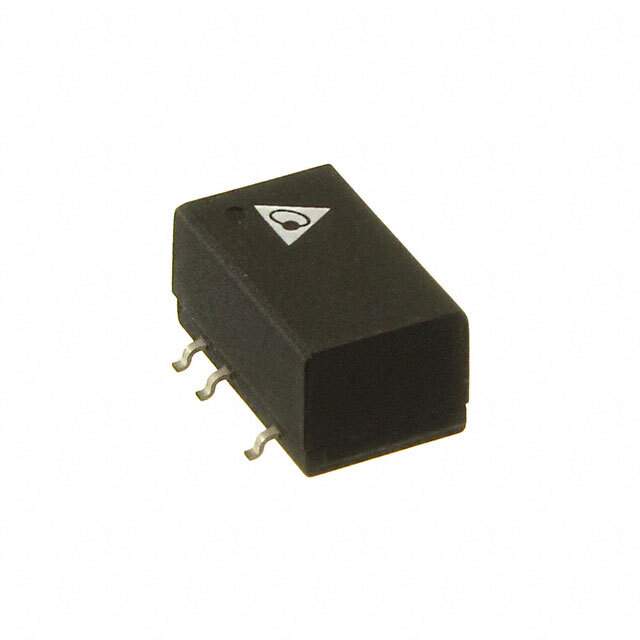

Same model may have multiple batches, images only for reference.

SH01S1205A

Name: SH01S1205A
Brand: Delta Electronics
SKU: 1237422
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SH01S1205A
Manufacturer	Delta Electronics
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 1W / Isolated Module DC DC Converter 1 Output 5V 200mA 10.8V - 13.2V Input
Datasheet	SH01S1205A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Delta Electronics
Series	SH01S/D (1W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	10.8V
Voltage - Input (Max)	13.2V
Voltage - Output 1	5V
Current - Output (Max)	200mA
Power (Watts)	1 W
Voltage - Isolation	1.5 kV
Applications	Medical
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	76%
Mounting	SMD (SMT)
Package / Case	8-SMD Module, 5 Leads
Dimension	0.54" L x 0.31" W x 0.28" H (13.7mm x 8.0mm x 7.0mm)
Base Product Number	SH01S
Other Names	941-1289
Standard Package	10
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1237422-SH01S1205A
Ultra Librarian 3D Model	Ultra Librarian SH01S1205A CAD Model

Alternative Products

Description

The SH01S1205A is an isolated module DC-DC converter manufactured by Delta Electronics.

Application: medical applications
Power Output: 1W
Voltage Isolation: 1.5kV
Efficiency: 76%
Series: SH01S/D (1W)
Features: SCP features
Package: 8-SMD module, 5 leads
Operating Temperature Range: -40°C to 85°C
REACH: REACH unaffected
ECCN: EAR99
