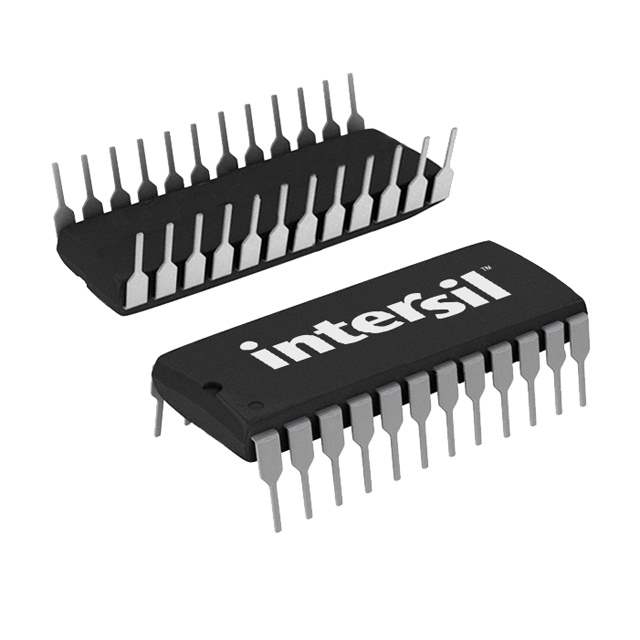

HIP4086APZ Real Image
Same model may have multiple batches, images only for reference.

HIP4086APZ

Part No HIP4086APZ
Manufacturer Intersil
Catalog PMIC - Gate Drivers
Description IC DRIVER FET 3PHASE N-CH 24DIP
Datasheet
HIP4086APZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Intersil
Packaging Tube/Rail
Status Active
Driven Configuration Half-Bridge
Channel Type 3-Phase
Number of Drivers 6
Gate Type N-Channel MOSFET
Supply Voltage - Operating 7 V to 15 V
Logic Voltage - VIL, VIH 1V, 2.5V
Current - Peak Output (Source, Sink) 500mA, 500mA
Input Type Inverting, Non-Inverting
High Side Voltage - Max (Bootstrap) 95V
Rise and Fall Time 20ns, 10ns
Temperature Range - Operating -40°C to 150°C (TJ)
Mounting Through Hole
Case / Package 24-PDIP
Win Source Part Number 001625-HIP4086APZ
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian HIP4086APZ CAD Model

Description

The Intersil Integrated Circuits is a 3-phase channel type product that is highly efficient and reliable. It has an input type of inverting, non-inverting and a driven configuration of half-bridge.

  • Channels: 3-phase
  • Input Type: Inverting, Non-inverting
  • Configuration: Half-bridge
  • Number of Drivers: 6
  • Gate Type: N-Channel MOSFET
  • Win Source Part Number: 001625-HIP4086APZ
  • Supply and Demand Status: Balanced
  • Mounting: Through-hole
  • Package: 24-PDIP
  • Operating Temperature: -40°C to 150°C (TJ)
  • Supply Voltage: 7 V to 15 V
