Products specifications

Category Integrated Circuits (ICs) - Linear - Amplifiers - Video Amps and Modules
Mfr Intersil
Package Tube
Product Status Obsolete
Output Type Rail-to-Rail
Number of Circuits 2
-3db Bandwidth 44 MHz
Slew Rate 80V/µs
Current - Supply 7.6 mA
Current - Output / Channel 65 mA
Voltage - Supply, Single/Dual (±) 4.5V ~ 16.5V, ±2.25V ~ 8.25V
Mounting Type Surface Mount
Package / Case 24-VFQFN Exposed Pad
Supplier Device Package 24-QFN (4x5)
Standard Package 100 pcs
ECCN EAR99
HTSUS 8542.33.0001
Win Source Part Number 588827-EL9201ILZ
Ultra Librarian 3D Model Ultra Librarian EL9201ILZ CAD Model

Description

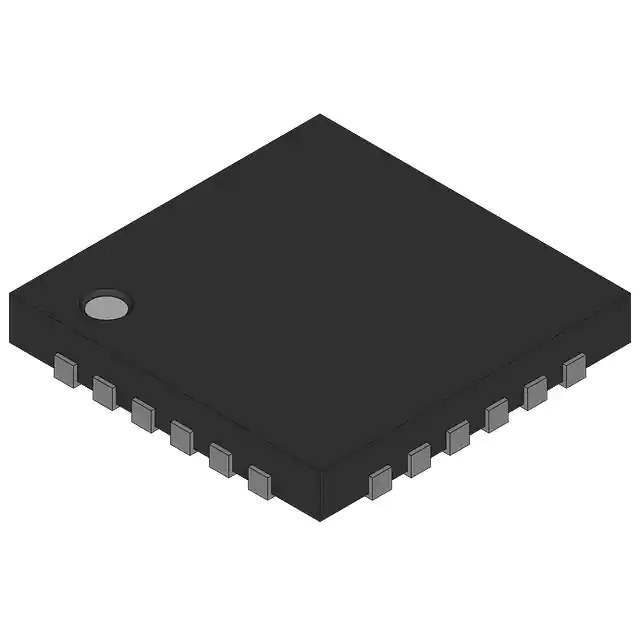

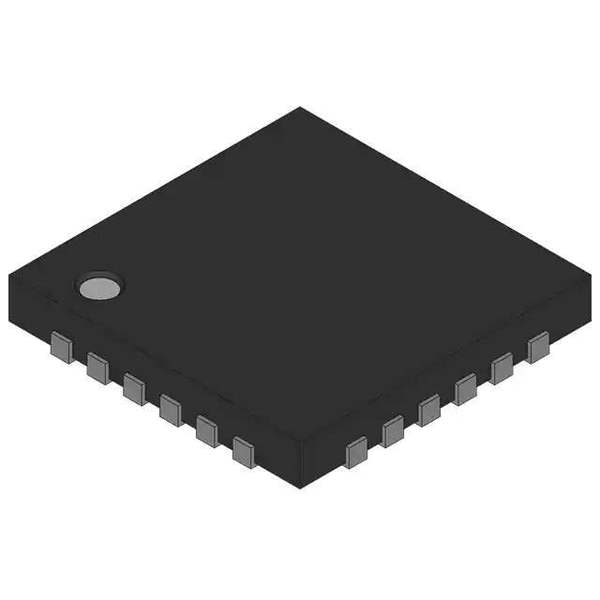

The EL9201ILZ is an integrated circuit (IC) designed for linear amplification in video applications.

  • Category: Integrated circuits (ICs) specifically designed for video amplifiers and modules
  • Package: Tube
  • Standard Package Quantity: 100 pieces
  • Circuits: 2
  • Output: Rail-to-rail
  • -3db Bandwidth: 44MHz
  • Slew Rate: 80V/µs
  • Current Supply: 7.6mA
  • Current Output per Channel: 65mA
  • Voltage Supply: 4.5V to 16.5V (single supply), ±2.25V to ±8.25V (dual supplies)
  • Mounting: Surface mountable
  • Package: 24-VFQFN exposed pad
  • ECCN: EAR99
  • HTSUS Code: 8542.33.0001
  • Status: Obsolete
