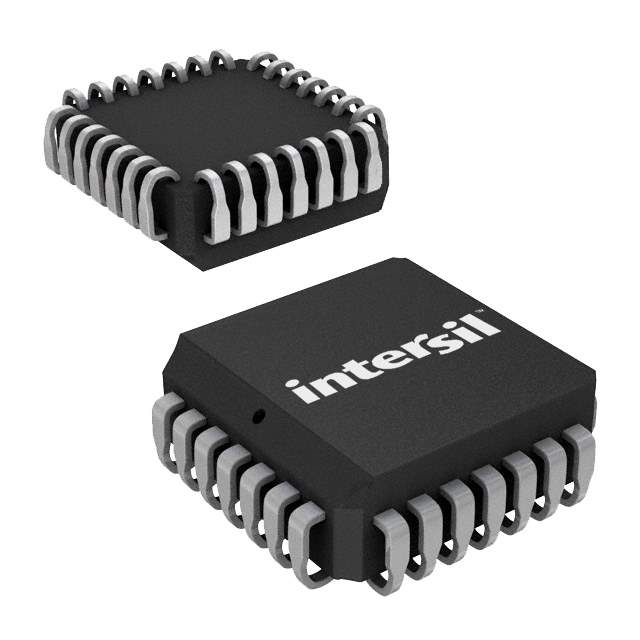

CS82C54Z96 Real Image CS82C54Z96 real image21550
Same model may have multiple batches, images only for reference.
CS82C54Z96 Real Image CS82C54Z96 real image21550
CS82C54Z96 Real Image CS82C54Z96 real image21550
Same model may have multiple batches, images only for reference.

CS82C54Z96

Part No CS82C54Z96
Manufacturer Intersil
Catalog Clock/Timing - Programmable Timers and Oscillators
Description IC OSC PROG TIMER 8MHZ 28PLCC / Programmable Timer Single 28-Pin PLCC T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Intersil
Packaging Reel package
Type Programmable Timer
Frequency 8MHz
Operating Supply Voltage 4.5 V ~ 5.5 V
Operating Supply Current 10mA
Operating Temperature Range 0°C ~ 70°C
Package 28-LCC (J-Lead)
Manufacturer Package 28-PLCC (11.51x11.51)
Mounting SMD
Win Source Part Number 771840-CS82C54Z96
Popularity Medium
Supply and Demand Status Balance
Family Name 82C54
Introduction Date March 25, 1996
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian CS82C54Z96 CAD Model

Description

The Intersil 82C54Z96 is a programmable timer chip that operates at a frequency of 8MHz.

  • Operating Supply Voltage: 4.5V to 5.5V
  • Operating Temperature: 0°C to 70°C
  • Package: 28-LCC (J-Lead)
  • Mounting: SMD
  • Family: 82C54
  • Operating Supply Current: 10mA
  • Halogen-Free Compliant: Yes
  • Popularity: Medium
