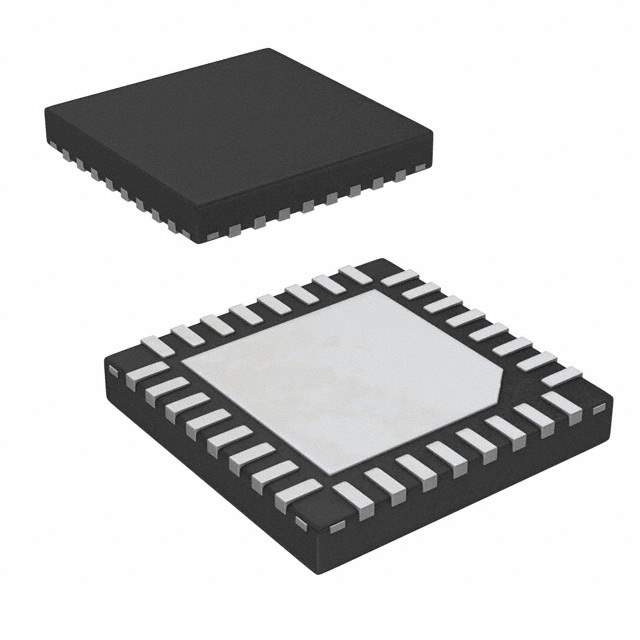

The ISL24005IRTZ is a high-performance, integrated gamma buffer designed by Intersil Corporation (now Renesas). This device is specifically tailored for use in LCD displays to correct the non-linear relationship between input voltage and display luminance, ensuring accurate color reproduction and image quality. It incorporates multiple gamma channels and features low power consumption, making it suitable for a wide range of display applications.

Applications

• LCD TVs
• LCD monitors
• Notebook computers
• Portable display devices
• Professional displays
• Automotive displays

Features

• Multiple gamma channels (typically 14)
• Low power consumption
• High accuracy gamma correction
• Internal voltage reference
• I2C interface for programming
• Small form factor package

Benefits

• Improved color accuracy and image quality in LCD displays
• Extended battery life in portable devices due to low power consumption
• Precise control over display gamma characteristics
• Simplified system design with integrated voltage reference
• Easy programmability via I2C interface
• Reduced board space requirements due to compact package

Additional Details

The ISL24005IRTZ operates from a single power supply voltage, typically 3.3V. It includes an internal voltage reference to ensure stable and accurate gamma correction. The I2C interface enables precise adjustment of the gamma settings to match the specific characteristics of the LCD panel. The device is available in a small form factor package, such as a TSSOP or QFN, to minimize board space. It is designed to meet the rigorous requirements of high-performance display applications, delivering exceptional color accuracy and image clarity. Its features also include power-down mode to save even more power when the display is not active.
