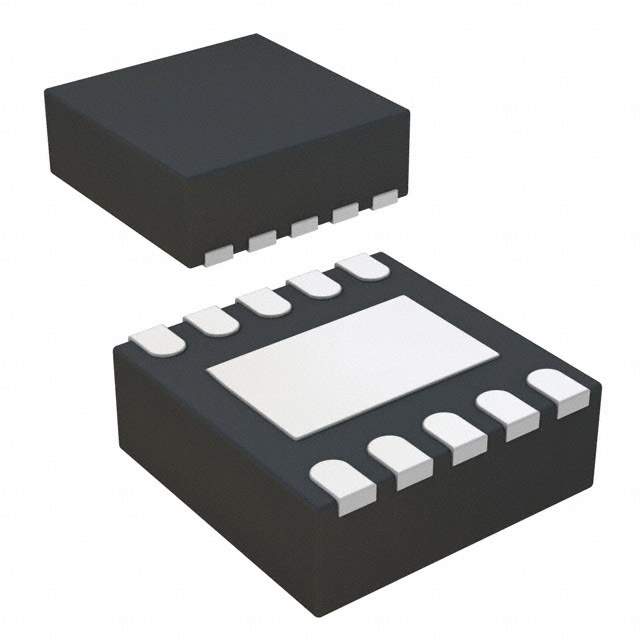

The CHL8510 is a dual-channel synchronous buck MOSFET driver designed and manufactured by International Rectifier (now part of Infineon Technologies). It's specifically engineered for high-current, high-efficiency synchronous buck converters used in various power management applications. This driver enables precise control and optimization of MOSFET switching, leading to improved overall system performance.

Applications

• VRMs (Voltage Regulator Modules): Used in VRMs for CPUs, GPUs, and memory in desktop and server computers.
• POL (Point-of-Load) Converters: Employed in POL converters for distributed power architectures.
• High-Current Power Supplies: Utilized in high-current power supplies for telecom and networking equipment.
• Graphics Cards: Found in high-end graphics cards for powering the GPU and memory.
• Industrial Power Systems: Applied in industrial power systems requiring efficient and reliable power conversion.

Features

• Dual-Channel Operation: Drives two synchronous buck MOSFETs independently.
• Adaptive Gate Drive: Features adaptive gate drive strength for optimized switching performance.
• Adjustable Dead-Time Control: Allows for adjustable dead-time control to minimize body diode conduction losses.
• Over-Current Protection (OCP): Includes over-current protection to prevent damage from excessive current draw.
• Over-Temperature Protection (OTP): Provides over-temperature protection to prevent thermal damage.

Benefits

• Improved Efficiency: Adaptive gate drive and adjustable dead-time control contribute to improved efficiency in synchronous buck converters.
• Enhanced Performance: Precise control of MOSFET switching leads to enhanced performance and stability.
• Protection Features: Over-current and over-temperature protection prevent damage and improve system reliability.
• Flexibility: Adjustable parameters allow for customization to specific application requirements.
• Reduced Power Loss: Minimizes body diode conduction losses, reducing overall power loss in the converter.

Additional Details

The CHL8510 operates with a wide input voltage range and is designed to drive both high-side and low-side N-channel MOSFETs. It incorporates advanced features such as adaptive dead-time control and gate drive strength optimization to maximize efficiency and minimize switching losses. The integrated protection features, including over-current and over-temperature protection, ensure reliable operation under various load conditions. Its robust design and comprehensive feature set make it a popular choice for high-performance synchronous buck converter applications.
