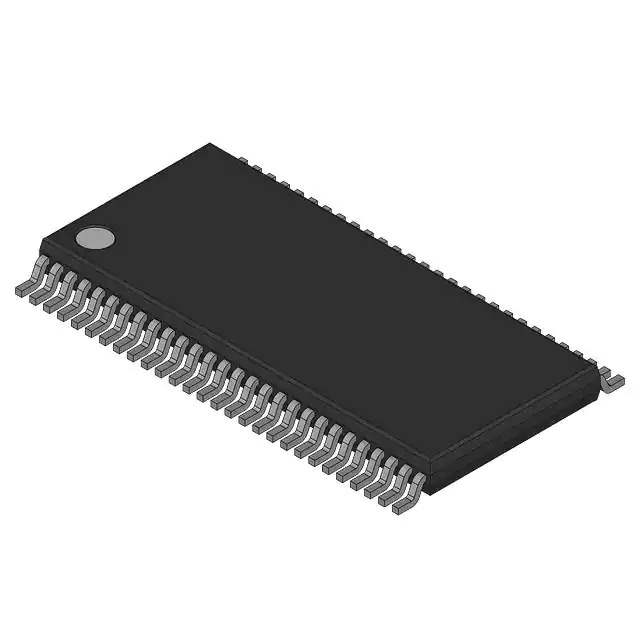

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Memory - Memory
Mfr Intel
Series StrataFlash™
Package Tray
Product Status Obsolete
Programmable Not Verified
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH - NOR
Memory Size 128Mbit
Memory Organization 8M x 16
Memory Interface Parallel
Clock Frequency 40 MHz
Write Cycle Time - Word, Page 85ns
Access Time 85 ns
Voltage - Supply 1.7V ~ 2V
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 56-TFSOP (0.724", 18.40mm Width)
Supplier Device Package 56-TSOP (18.4x14)
Base Product Number 28F128P30
Standard Package 25 pcs
ECCN 3A991B1A
HTSUS 8542.32.0051
Win Source Part Number 936345-TE28F128P30T85A
Ultra Librarian 3D Model Ultra Librarian TE28F128P30T85A CAD Model

Description

The Intel 936345-TE28F128P30T85A is a memory IC that belongs to the category of Integrated Circuits (ICs) - Memory - Memory.

  • Series: StrataFlash™
  • Package: Tray
  • Standard Package: 25 pieces
  • Memory Type: Non-Volatile
  • Memory Size: 128Mbit
  • Access Time: 85 ns
  • Voltage Range: 1.7V to 2V
  • Mounting: Surface Mount
  • Package: 56-TFSOP
  • Width: 18.40mm
  • Temperature Range: -40°C to 85°C
  • Interface: Parallel
