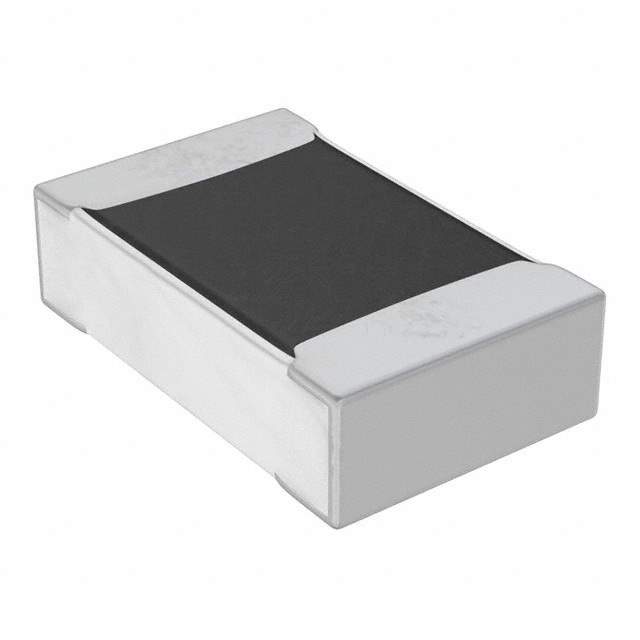

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Stackpole Electronics Inc
Series RNCP
Package Tape & Reel
Resistance 1 Ohms
Tolerance ±1%
Power (Watts) 0.125W, 1/8W
Composition Thin Film
Features Anti-Sulfur
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Size / Dimension 0.061" L x 0.031" W (1.55mm x 0.80mm)
Height - Seated (Max) 0.022" (0.55mm)
Number of Terminations 2
Standard Package 5,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1341073-RNCP0603FTD1R00
Ultra Librarian 3D Model Ultra Librarian RNCP0603FTD1R00 CAD Model

Description

The RNCP0603FTD1R00 is a chip resistor designed for surface mount applications.

  • Manufacturer: Stackpole Electronics Inc.
  • Series: RNCP
  • Mounting Type: Surface Mount
  • Resistance: 1 Ohms
  • Power Rating: 0.125W or 1/8W
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Composition: Thin Film
  • Terminations: 2
  • Package/Case: 0603 (1608 Metric)
  • Supplier Device Package: 0603
  • Height: 0.022" (0.55mm)
  • Size/Dimension: 0.061" L x 0.031" W (1.55mm x 0.80mm)
  • Feature: Anti-Sulfur
  • Package: Tape and Reel
  • Operating Temperature: -55°C to 155°C
