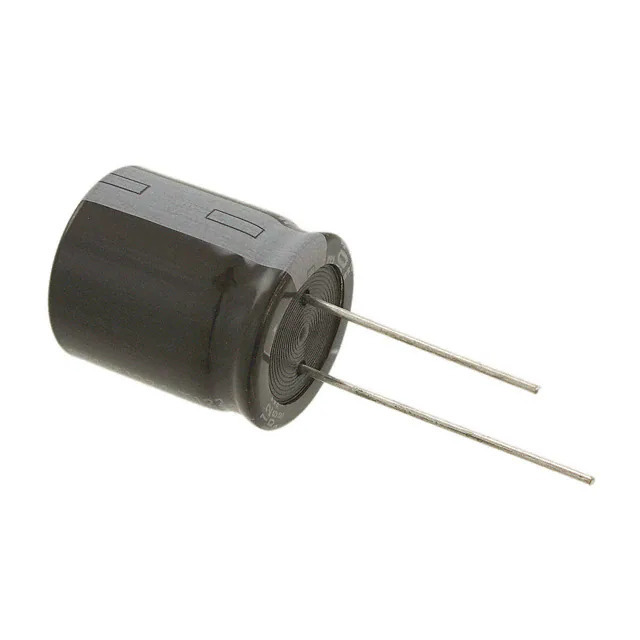

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series BXW
Package Bulk
Product Status Active
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 160 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 260 mA @ 120 Hz
Ripple Current @ High Frequency 650 mA @ 100 kHz
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.709" (18.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358042-160BXW47MEFR10X16
Ultra Librarian 3D Model Ultra Librarian 160BXW47MEFR10X16 CAD Model

Description

The Rubycon 1358042-160BXW47MEFR10X16 is a general-purpose aluminum electrolytic capacitor with a capacitance of 47 µF and a voltage rating of 160 V from Rubycon.

  • Applications: General Purpose
  • Operating Temperature: -40°C ~ 105°C
  • Tolerance: ±20%
  • Ripple Current @ Low Frequency: 260 mA @ 120 Hz
  • Ripple Current @ High Frequency: 650 mA @ 100 kHz
  • Lifetime @ Temp.: 10000 Hrs @ 105°C
  • Mounting Type: Through Hole
  • Package / Case: Radial, Can
  • Series: BXW
  • Packaging: Bulk
  • Polarization: Polar
  • Capacitance: 47 µF
  • Voltage - Rated: 160 V
  • REACH: Unaffected
  • ECCN: EAR99
