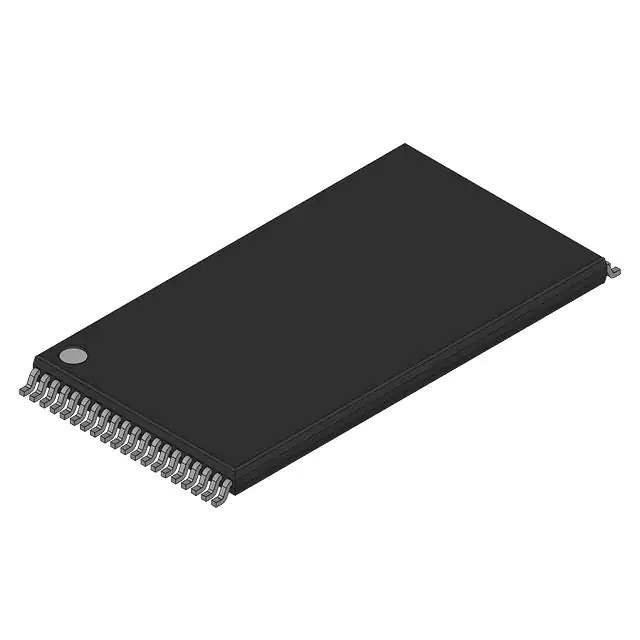

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Memory - Memory
Mfr Intel
Package Bulk
Product Status Active
Programmable Not Verified
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH - Boot Block
Memory Size 8Mbit
Memory Organization 1M x 8
Memory Interface CUI
Access Time 110 ns
Voltage - Supply 2.7V ~ 3.6V
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 40-TFSOP (0.724", 18.40mm Width)
Supplier Device Package 40-TSOP
Standard Package 1 pcs
MSL Level 3 (168 Hours)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8542.32.0071
Win Source Part Number 363639-TE28F008B3T110
Ultra Librarian 3D Model Ultra Librarian TE28F008B3T110 CAD Model

Description

The 363639-TE28F008B3T110 is an 8Mbit FLASH memory chip from Intel. It is a non-volatile memory chip with a boot block technology.

  • Manufacturer: Intel
  • Memory Size: 8Mbit
  • Memory Type: FLASH
  • Voltage Supply Range: 2.7V to 3.6V
  • Mounting Technology: Surface Mount Technology
  • Package: Bulk
  • Standard Package: 1 piece
  • Temperature Range: -40°C to 85°C
  • Product Status: Active
  • Memory Organization: 1M x 8
  • Interface: CUI
