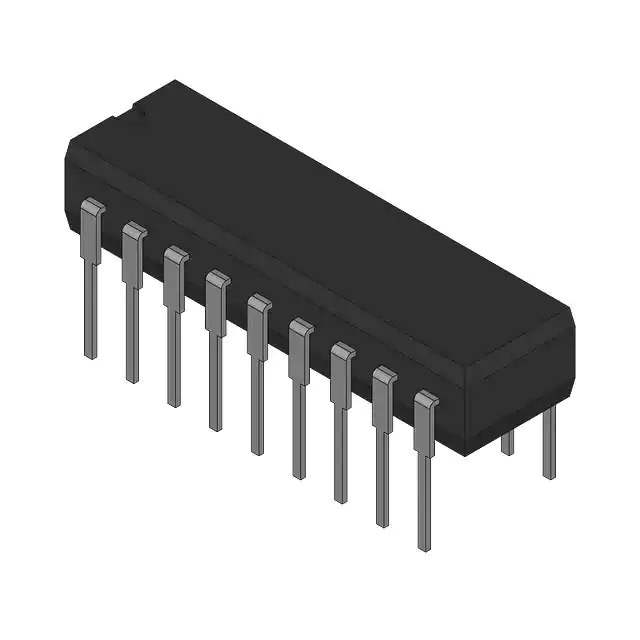

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Memory - Memory
Mfr Intel
Package Bulk
Product Status Active
Programmable Not Verified
Memory Type Volatile
Memory Format SRAM
Technology SRAM - Asynchronous
Memory Size 4Kbit
Memory Organization 4K x 1
Memory Interface Parallel
Write Cycle Time - Word, Page 55ns
Access Time 55 ns
Voltage - Supply 4.5V ~ 5.5V
Temperature Range - Operating -55°C ~ 125°C (TC)
Mounting Type Through Hole
Package / Case 18-CDIP
Supplier Device Package 18-CDIP
Standard Package 1 pcs
MSL Level 3 (168 Hours)
REACH Status Vendor Undefined
HTSUS 0000.00.0000
Win Source Part Number 226813-MD2147H3
Ultra Librarian 3D Model Ultra Librarian MD2147H3 CAD Model

Description

The Intel MD2147H3 is an active integrated circuit (IC) classified under memory devices. It is specifically designed as a synchronous random access memory (SRAM) with a capacity of 4Kbit.

  • Voltage Supply: The MD2147H3 operates with a voltage supply range of 4.5V to 5.5V.
  • Mounting: It is mounted using through-hole technology and comes in an 18-CDIP package.
  • Suitability: This IC is suitable for applications requiring volatile memory.
  • Temperature Range: It has a temperature range of -55°C to 125°C (TC)
  • Write Cycle Time: and a write cycle time of 55ns.
  • Production Status: The Intel MD2147H3 is currently in active production and is not affected by REACH regulations.
