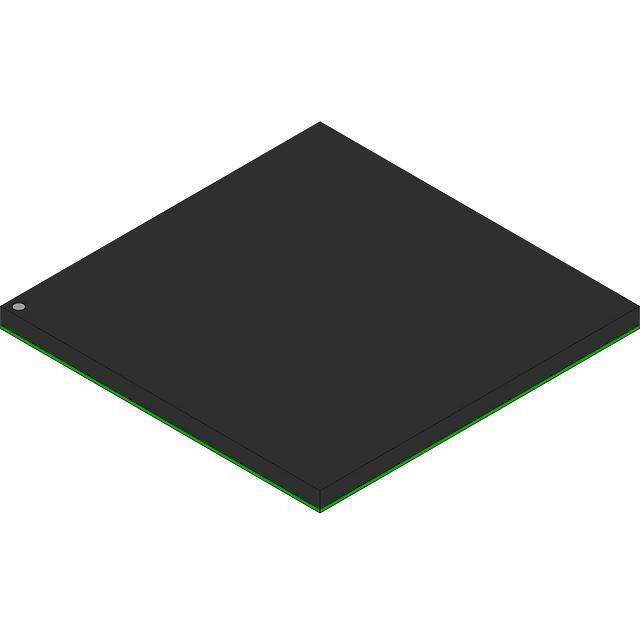

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Features series Field Programmable Gate Array (FPGA) IC 500 1369728 33880 672-BBGA
Manufacturer Intel
Series Stratix® II
Package Tray
Part Status Obsolete
Number of I/O 500
Operating Temperature Range 0°C ~ 85°C (TJ)
Mounting Surface Mount
Package 672-BBGA
Case / Package 672-FBGA (27x27)
Family Name EP2S30
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A001A7A
HTSUS 8542.39.0001
Other Part Number 544-1125, 972240, -544-1125
Quantity per package 40
Popularity High
Supply and Demand Status Balance
Win Source Part Number 918252-EP2S30F672C4
Ultra Librarian 3D Model Ultra Librarian EP2S30F672C4 CAD Model

Description

The Intel EP2S30F672C4 is a Stratix II series Field Programmable Gate Array (FPGA) IC.

  • Package: 672-BBGA
  • Mounting Style: Surface Mount
  • Number of I/O: 500
  • Family Name: EP2S30
  • Operating Temperature Range: 0°C to 85°C (TJ)
  • Status: Obsolete
  • Supply and Demand Status: Balance
  • MSL Level: 3 (168 hours)
  • REACH: REACH unaffected
  • ECCN: 3A001A7A
  • HTSUS: 8542.39.0001
  • Other part numbers: 544-1125, 972240, and -544-1125
