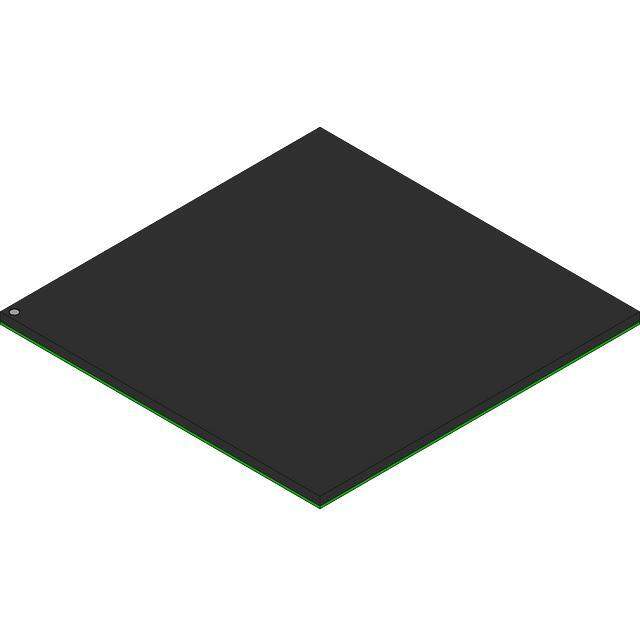

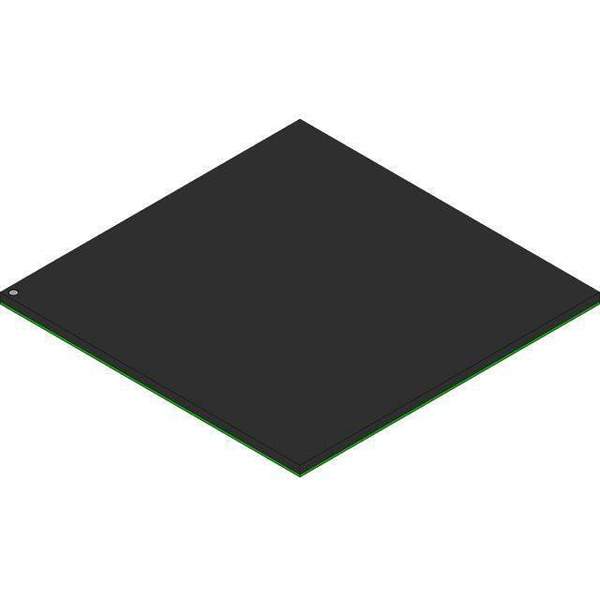

EP20K300EBC652-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded>FPGAs (Field Programmable Gate Array)
Manufacturer Intel
Packaging Tray
Product Status Obsolete
Number of LABs/CLBs 1152
Number of Logic Elements/Cells 11520
Total RAM Bits 147456
Number of I/O 408
Number of Gates 728000
Voltage - Supply 1.71V ~ 1.89V
Mounting Surface Mount
Temperature Range - Operating 0°C ~ 85°C (TJ)
Case / Package 652-BGA
Supplier Device Package 652-BGA (45x45)
Base Product Number EP20K300
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A001A2A
HTSUS 8542.39.0001
Other Part Number 966681
Standard Package 12
Win Source Part Number 1318246-EP20K300EBC652-1
Ultra Librarian 3D Model Ultra Librarian EP20K300EBC652-1 CAD Model

Description

The Intel EP20K300EBC652-1 is an integrated circuit designed for embedded field programmable gate array (FPGA) applications.

  • Logic Elements/Cells: 11520
  • Gates: 728000
  • I/Os: 408
  • LABs/CLBs: 1152
  • Total RAM Bits: 147456
  • Voltage Supply: 1.71V to 1.89V
  • Temperature Range: 0°C to 85°C
  • Package: 652-BGA (45x45)
  • MSL Level: 3 (168 hours)
  • Status: Obsolete
