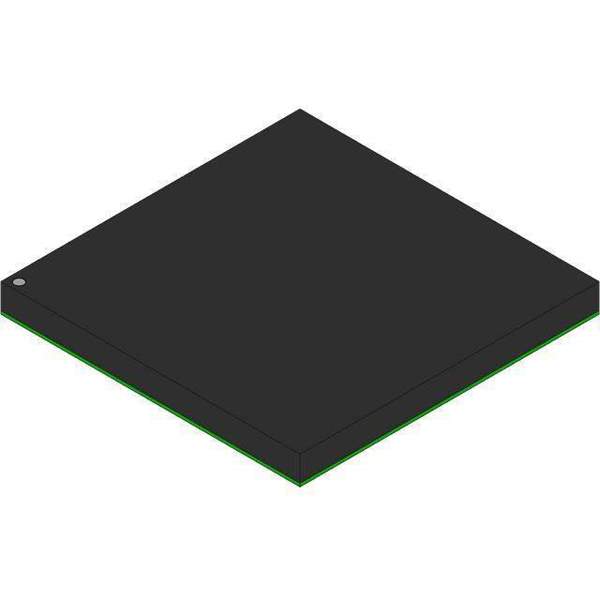

EP1SGX40DF1020C7 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Features series Field Programmable Gate Array (FPGA) IC 624 3423744 41250 1020-BBGA
Manufacturer Intel
Series Stratix® GX
Package Tray
Part Status Obsolete
Number of I/O 624
Operating Temperature Range 0°C ~ 85°C (TJ)
Mounting Surface Mount
Package 1020-BBGA
Case / Package 1020-FBGA (33x33)
Family Name EP1SGX40
MSL Level 3 (168 Hours)
ECCN 3A001A7A
HTSUS 8542.39.0001
Quantity per package 24
Popularity High
Supply and Demand Status Balance
Win Source Part Number 918139-EP1SGX40DF1020C7
Ultra Librarian 3D Model Ultra Librarian EP1SGX40DF1020C7 CAD Model

Description

The Intel EP1SGX40DF1020C7 is a series field programmable gate array (FPGA) IC that comes with 624 I/Os.

  • I/Os: 624
  • Logic Elements: 3423744
  • Package: 1020-BBGA
  • Operating Temperature: 0°C to 85°C (TJ)
  • Gates: 41250
  • Case/Package: 1020-FBGA (33x33)
  • Status: Obsolete
  • Supply and Demand: Limited
  • Quantity per Package: 24
