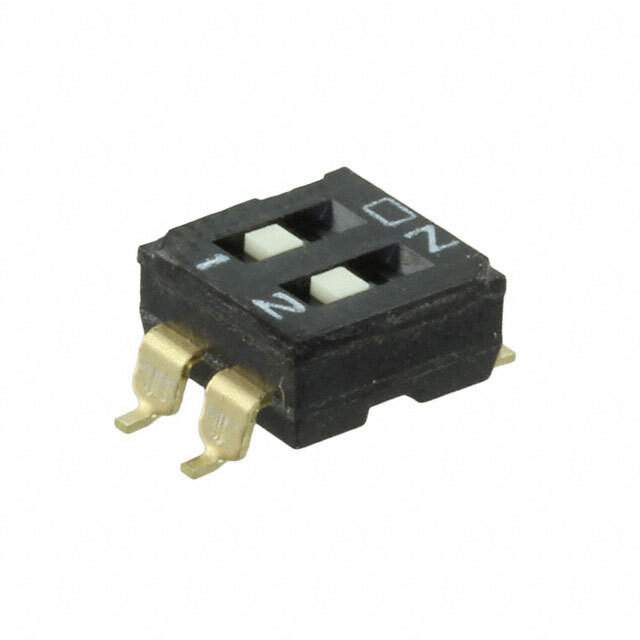

The Omron A6S-2101 is a DIP (Dual In-Line Package) switch, specifically a 2-position switch. It is designed for easy configuration and programming of electronic circuits. These switches are typically used to set options, select modes, or define addresses on printed circuit boards.

Applications

• Setting addresses for devices on a bus
• Configuring communication parameters
• Selecting operating modes
• Programming electronic devices
• Calibration adjustments
• Hardware configuration settings

Features

• 2-position switch
• DIP package for easy PCB mounting
• Reliable contact performance
• Sealed construction available
• Available in through-hole and surface mount versions
• Easy to actuate

Benefits

• Allows for easy configuration of electronic circuits
• Provides a reliable and durable switching solution
• Simplifies hardware setup and programming
• Protects contacts from dust and contaminants (sealed versions)
• Offers flexible mounting options
• User-friendly operation

Additional Details

The A6S-2101 features gold-plated contacts to ensure reliable and low-resistance switching. The DIP package allows for easy insertion into standard IC sockets or direct soldering to a printed circuit board. The switch is designed to withstand typical soldering processes. Key specifications include contact rating (voltage and current), contact resistance, and insulation resistance. Omron provides detailed datasheets including dimensions, circuit diagrams, and operating characteristics for this DIP switch. The switch is commonly used in applications where occasional adjustments or configurations are required without the need for software changes. Available with different actuator styles.
