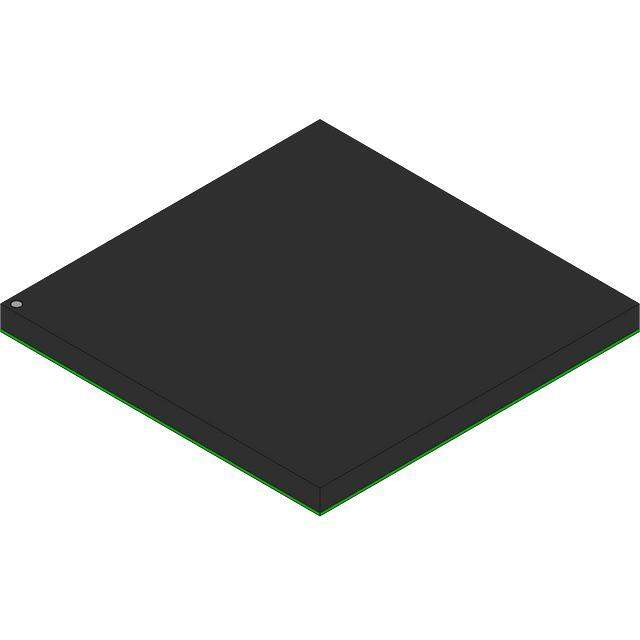

EP1S80B956C7 Real Image
Same model may have multiple batches, images only for reference.

EP1S80B956C7

Part No EP1S80B956C7
Manufacturer Intel
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC FPGA 683 I/O 956BGA
Datasheet
EP1S80B956C7 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Features series Field Programmable Gate Array (FPGA) IC 683 7427520 79040 956-BBGA
Manufacturer Intel
Series Stratix®
Package Tray
Part Status Obsolete
Number of I/O 683
Operating Temperature Range 0°C ~ 85°C (TJ)
Mounting Surface Mount
Package 956-BBGA
Case / Package 956-BGA (40x40)
Family Name EP1S80
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A001A7A
HTSUS 8542.39.0001
Other Part Number 544-1438, 970892, EP1S80B956C7-ND
Quantity per package 21
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 870487-EP1S80B956C7
Ultra Librarian 3D Model Ultra Librarian EP1S80B956C7 CAD Model

Description

The Intel EP1S80B956C7 is a series field programmable gate array (FPGA) IC that belongs to the Stratix® series.

  • Device Category: Integrated circuits (ICs)
  • Package Form Factor: Tray
  • Mounting Style: Surface mount
  • Number of I/O: 683
  • Device Status: Obsolete
  • Family Name: EP1S80
  • Supply and Demand Status: Limited
  • Available Pieces in One Package: 21
  • MSL Level: 3 (168 Hours)
  • Device REACH Status: REACH unaffected
  • ECCN: 3A001A7A
  • HTSUS: 8542.39.0001
  • Other Part Numbers: 544-1438, 970892, EP1S80B956C7-ND
