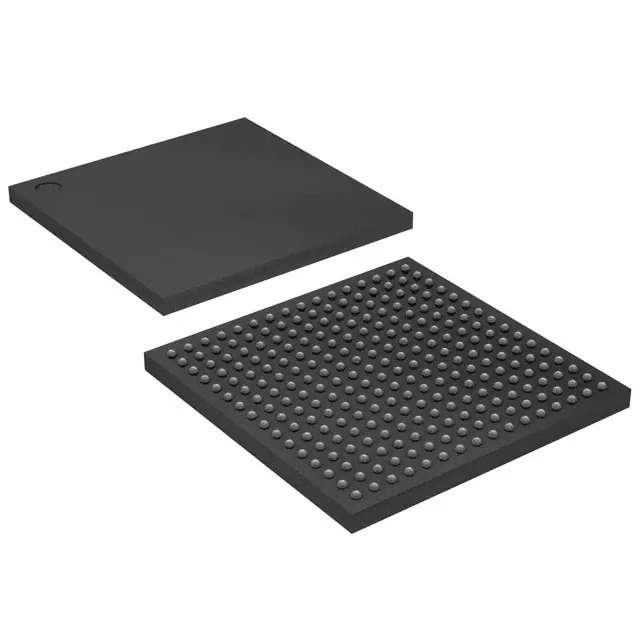

5M1270ZF256A5N Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - CPLDs (Complex Programmable Logic Devices)
Mfr Intel
Series MAX® V
Package Tray
Product Status Active
Programmable Not Verified
Programmable Type In System Programmable
Delay Time tpd(1) Max 6.2 ns
Voltage Supply - Internal 1.71V ~ 1.89V
Number of Logic Elements/Blocks 1270
Number of Macrocells 980
Number of I/O 211
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting Type Surface Mount
Package / Case 256-LBGA
Supplier Device Package 256-FBGA (17x17)
Base Product Number 5M1270
Standard Package 90 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A001A7A
HTSUS 8542.39.0001
Win Source Part Number 856774-5M1270ZF256A5N
Ultra Librarian 3D Model Ultra Librarian 5M1270ZF256A5N CAD Model

Description

The 856774-5M1270ZF256A5N is a CPLD (Complex Programmable Logic Device) integrated circuit from Intel.

  • Series: MAX V
  • Application: Embedded systems
  • Package: Tray
  • Standard Package: 90 pieces
  • Input/Output Pins: 211
  • Programmability: Not verified, designed for in-system programmability
  • Delay Time tpd(1): Maximum 6.2 ns
  • Voltage Supply: 1.71V to 1.89V
  • Logic Elements/Blocks: 1270
  • Macrocells: 980
  • Package/Case: 256-LBGA
  • Supplier Device Package: 256-FBGA (17x17)
  • Temperature Range: -40°C to 125°C
  • ECCN: 3A001A7A
  • MSL Level: 3
  • REACH: Unaffected
  • HTSUS Code: 8542.39.0001
  • Status: Active
