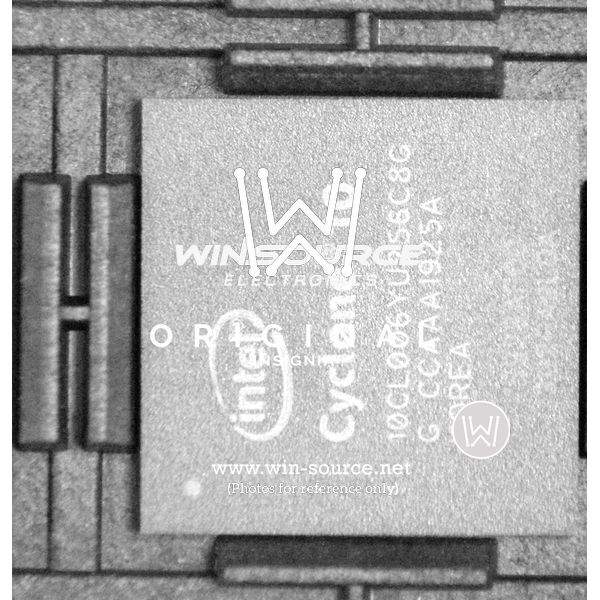

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Intel
Packaging Tray
Number of LABs/CLBs 392
Number of Logic Elements/Cells 6272
Total RAM Bits 276480
Number of I/O 176
Supply Voltage (V) 1.2V
Mounting Style SMD
Temperature Range - Operating 0°C ~ 85°C
Manufacturer Package 256-LFBGA
Supplier Device Package 256-UBGA (14x14)
Manufacturer Pack Quantity 119
MSL Level 3 (168 Hours)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809855-10CL006YU256C8G
Ultra Librarian 3D Model Ultra Librarian 10CL006YU256C8G CAD Model

Description

The Intel 809855-10CL006YU256C8G is a high-performance FPGA.

  • Logic Elements/Cells: 6272
  • LABs/CLBs: 392
  • I/Os: 176
  • RAM Bits: 276480
  • Supply Voltage: 1.2V
  • Package: 256-UBGA (14x14)
  • Temperature Range: 0°C to 85°C
