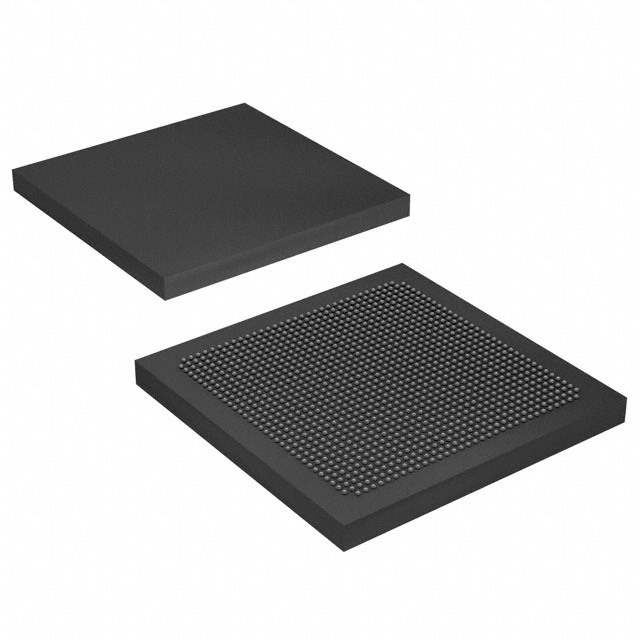

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - System On Chip (SoC)
Mfr Intel
Series Arria 10 SX
Package Tray
Product Status Active
Architecture MCU, FPGA
Core Processor Dual ARM® Cortex®-A9 MPCore™ with CoreSight™
RAM Size 256KB
Peripherals DMA, POR, WDT
Connectivity EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG
Speed 1.5GHz
Primary Attributes FPGA - 660K Logic Elements
Temperature Range - Operating 0°C ~ 100°C (TJ)
Package / Case 1152-BBGA, FCBGA
Supplier Device Package 1152-FBGA, FC (35x35)
Number of I/O 396
Standard Package 1 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A001A7B
HTSUS 8542.39.0001
Win Source Part Number 853688-10AS066K3F35E2SG
Ultra Librarian 3D Model Ultra Librarian 10AS066K3F35E2SG CAD Model

Description

The 853688-10AS066K3F35E2SG is a system-on-chip (SoC) integrated circuit (IC) from Intel.

  • Series: Arria 10 SX
  • Processor: Dual ARM Cortex-A9 MPCore processor with CoreSight
  • Processor Speed: 1.5GHz
  • Connectivity: EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART
  • Peripherals: DMA, POR, WDT
  • I/O Pins: 396
  • Package: 1152-BBGA
  • Operating Temperature: 0°C to 100°C
  • Product Status: Active
