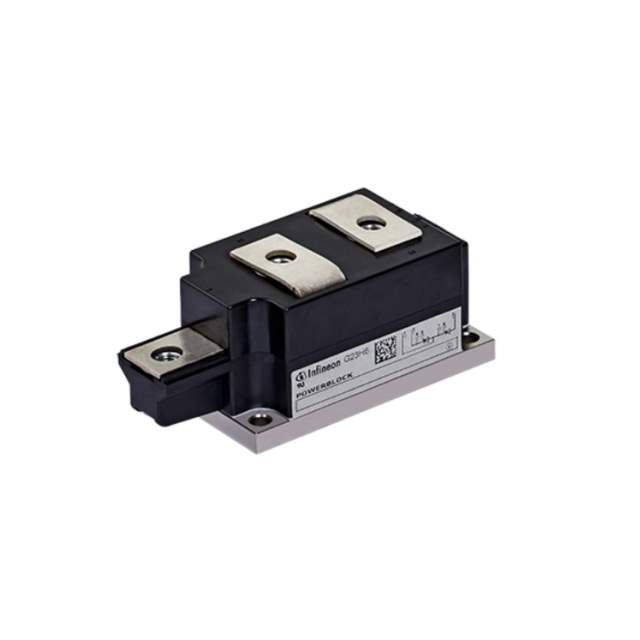

The TT251N14KOF is a thyristor module manufactured by Infineon Technologies. It's designed for various power control applications where high voltage and current handling are required.

Applications:

• AC motor control: Used in variable frequency drives (VFDs) for controlling the speed of AC motors.
• DC motor control: Employed in DC motor drives for precise speed and torque regulation.
• Soft starters: Incorporated in soft starters for reducing inrush current during motor startup.
• Rectifiers: Used in controlled and uncontrolled rectifiers for converting AC to DC power.
• Static switches: Employed in static switches for fast and reliable switching of high-power circuits.
• Welding equipment: Integrated into welding machines for controlling the welding current and voltage.
• Power supplies: Found in high-power DC power supplies for industrial applications.

Features:

• High Voltage Capability: Designed to operate at high voltage levels, typically around 1400V.
• High Current Handling: Capable of handling large currents, enabling control of high-power loads.
• Isolated Baseplate: Provides electrical isolation between the terminals and the mounting surface, enhancing safety.
• Low On-State Voltage Drop: Minimizes power dissipation and improves efficiency.
• High Surge Current Capability: Can withstand high surge currents, ensuring reliable operation under fault conditions.
• Robust Construction: Designed for harsh industrial environments with good thermal cycling performance.

Benefits:

• Improved Motor Control: Enables precise and efficient control of AC and DC motors, leading to energy savings.
• Reduced Inrush Current: Minimizes stress on the power grid and equipment during motor startup, extending equipment life.
• Enhanced System Reliability: Provides reliable switching and control of high-power circuits, reducing downtime.
• Increased Safety: The isolated baseplate enhances safety by preventing electrical shock hazards.
• Energy Efficiency: Low on-state voltage drop minimizes power losses, improving overall system efficiency.

Technical Specifications (Typical):

• Voltage Rating: 1400V
• Current Rating: 251A
• Gate Trigger Current: Typically a few milliamperes
• Operating Temperature: -40°C to +125°C
• Isolation Voltage: Typically 2500V AC

This thyristor module is suitable for applications requiring robust and reliable power control in demanding industrial environments.
