The TLE94004EPXUMA1 from Infineon Technologies is a half-bridge driver IC that is designed to control DC motors. It is a general-purpose driver that can be used in a variety of applications, including automotive, industrial, and consumer electronics.

The TLE94004EPXUMA1 has two half-bridge drivers that can each source or sink up to 2A of current. It has a wide supply voltage range of 3V to 5.5V and can drive loads up to 20V. The driver also has a number of protection features, including current limiting, over temperature protection, short circuit protection, and undervoltage lockout.

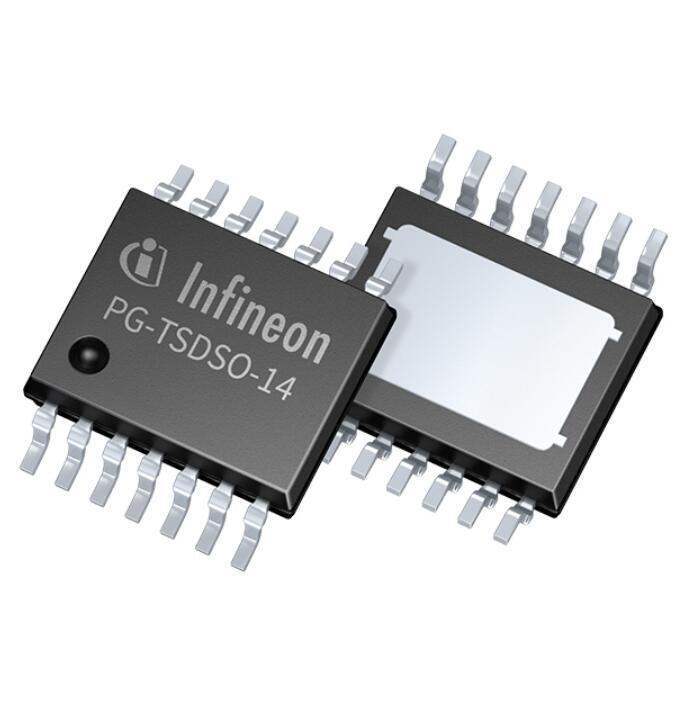

The TLE94004EPXUMA1 is packaged in a 14-pin TSSOP package with an exposed pad. It is a surface mount device that can be easily assembled onto printed circuit boards.

Features:

• Two half-bridge drivers that can each source or sink 2A of current
• Wide supply voltage range of 3V to 5.5V
• Can drive loads up to 20V
• Current limiting, over temperature protection, short circuit protection, and undervoltage lockout
• 14-pin TSSOP package with exposed pad

Applications:

• Automotive: DC motors for window lifters, sunroof drives, seat adjusters, etc.
• Industrial: DC motors for fans, pumps, robots, etc.
• Consumer electronics: DC motors for toys, power tools, appliances, etc.

Benefits:

• The TLE94004EPXUMA1 is a versatile half-bridge driver that can be used in a wide range of applications.
• It has a wide supply voltage range and can drive loads up to 20V, making it suitable for a variety of power sources.
• The driver has a number of protection features to ensure reliable operation.
• It is packaged in a small and easy-to-assemble TSSOP package.

Example use cases:

• The TLE94004EPXUMA1 can be used to control the DC motor in a window lifter. The two half-bridge drivers can be used to drive the motor up or down, and the protection features will ensure that the motor does not overheat or stall.
• The TLE94004EPXUMA1 can also be used to control the DC motor in a robot. The two half-bridge drivers can be used to drive the motor forward, backward, or turn, and the protection features will ensure that the motor does not overheat or stall.
• The TLE94004EPXUMA1 can also be used to control the DC motor in a power tool. The two half-bridge drivers can be used to drive the motor at different speeds, and the protection features will ensure that the motor does not overheat or stall.

Overall, the TLE94004EPXUMA1 is a versatile and reliable half-bridge driver that can be used in a wide range of applications.
