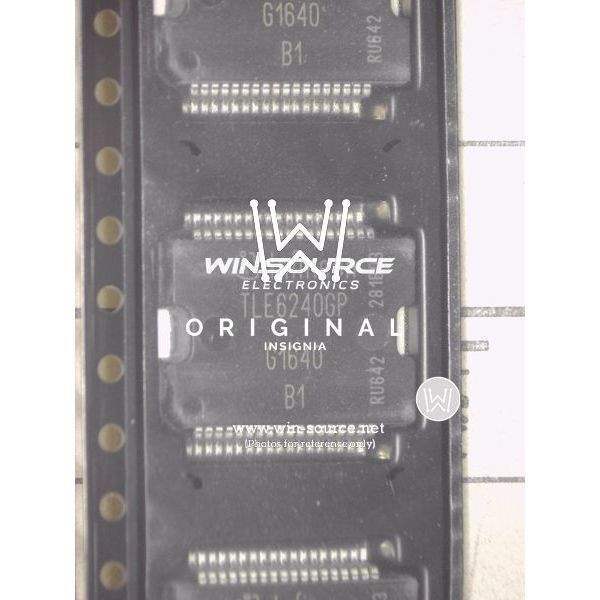

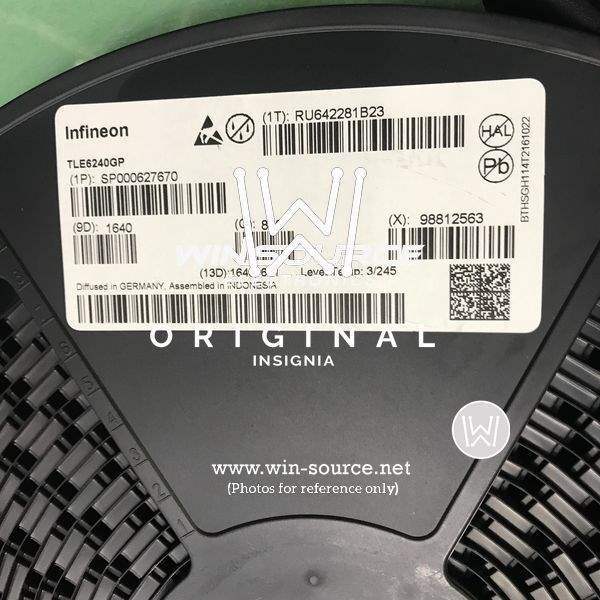

TLE6240GP Infineon Technologies TLE6240GP label picture TLE6240GP real image
Same model may have multiple batches, images only for reference.
TLE6240GP Infineon Technologies TLE6240GP label picture TLE6240GP real image
TLE6240GP Infineon Technologies TLE6240GP label picture TLE6240GP real image
Same model may have multiple batches, images only for reference.

TLE6240GP

Part No TLE6240GP
Manufacturer Infineon Technologies
Catalog PMIC - Power Distribution Switches, Load Drivers
Description Smart Low Side Current Limit Switch / IC SW SMART 16-CH LOWSIDE PDSO36
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Active
Switch Type General Purpose
Number of Outputs 16
Output Type N-Channel
Voltage - Load 45V (Max)
Supply Voltage - Operating 4.5 V to 5.5 V
Rds On (Typ) 300 mOhm, 350 mOhm, 1 Ohm
Features Status Flag
Fault Protection Open Load Detect, Over Temperature, Over Voltage
Temperature Range - Operating -40°C to 150°C (TJ)
Case / Package PG-DSO-36
Win Source Part Number 032805-TLE6240GP
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name TLE6240
Introduction Date August 26, 2002
ECCN EAR99
Country of Origin Indonesia
Halogen Free Compliant
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian TLE6240GP CAD Model

Description

The Infineon Technologies TLE6240GP is a general-purpose N-channel switch that comes with 16 outputs.

  • Channel Type: N-Channel
  • Outputs: 16
  • Package: PG-DSO-36
  • Operating Temperature: -40°C to 150°C
  • Features: Status Flag, Open Load Detect, Over Temperature, and Over Voltage Fault Protection
  • Voltage Load: Up to 45V
  • Rds On (Typ): 300 mOhm, 350 mOhm, and 1 Ohm
  • Applications: Integrated Circuits and other Electronic Devices
