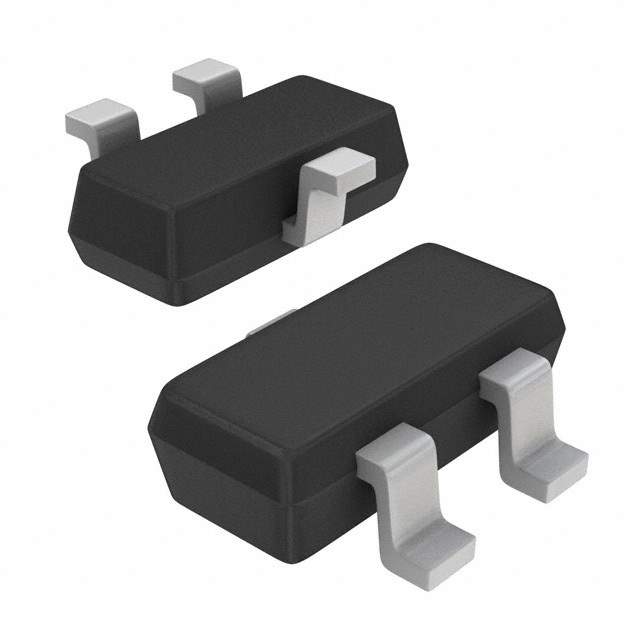

TLE4946H Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Infineon Technologies
Series TLE
Packaging Reel - TR
Part Status Obsolete(EOL)
Function Latch
Technology Hall Effect
Polarization South Pole
Sensing Range 17mT Trip, -17mT Release
Test Condition 25°C
Operating Supply Voltage 2.7 V ~ 18 V
Maximum Supply Current 6mA
Current - Output (Maximum) 20mA
Output Type Open Collector
Features Temperature Compensated
Operating Temperature Range -40°C ~ 150°C (TJ)
Package TO-236-3, SC-59, SOT-23-3
Manufacturer Package SC-59
Win Source Part Number 1269528-TLE4946H
Manufacturer Homepage www.infineon.com
Family Name TLE4946H
Introduction Date February 21, 2003
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TLE4946H CAD Model

Description

The TLE4946H is a temperature compensated Hall effect sensor manufactured by Infineon Technologies.

  • Sensor Type: Latch
  • Output Type: Open Collector
  • Sensing Range: 17mT Trip and -17mT Release
  • Win Source Part Number: 1269528-TLE4946H
  • Supply and Demand: Balance
  • Category: Sensors and Transducers
