Product Overview: AH1893-FA-7 from Diodes Incorporated

The AH1893-FA-7 is a high-performance, micropower omnipolar Hall effect switch IC designed by Diodes Incorporated, a leading global manufacturer and supplier of high-quality application-specific standard products within the broad discrete, logic, analog, and mixed-signal semiconductor markets. This compact and efficient sensor is engineered to cater to a wide range of applications, from industrial to consumer electronics, offering reliability and versatility in various magnetic sensing operations.

Key Features

• Omipolar Operation: The device can detect both north and south poles, providing flexibility in the application design, where the magnet's polarity is not strictly controlled or might change.
• High Sensitivity: With its built-in Hall element, the AH1893-FA-7 can detect and respond to low magnetic fields, ensuring accurate operation even with weaker magnets.
• Low Power Consumption: The IC is designed for battery-powered applications, with a typical supply current of only 24μA, which helps to extend battery life.
• Chopper Stabilized Design: This feature provides enhanced stability of the magnetic switch points over the full operating temperature and voltage ranges, reducing the effects of temperature and stress on the sensor.

Applications

• Portable and battery-powered equipment
• Home appliances
• Industrial sensors
• Consumer electronics
• Smart metering

Technical Specifications

• Supply Voltage (V<sub>CC): 1.6V to 3.6V
• Output Type: Open Drain
• Sensing Range: Omnipolar

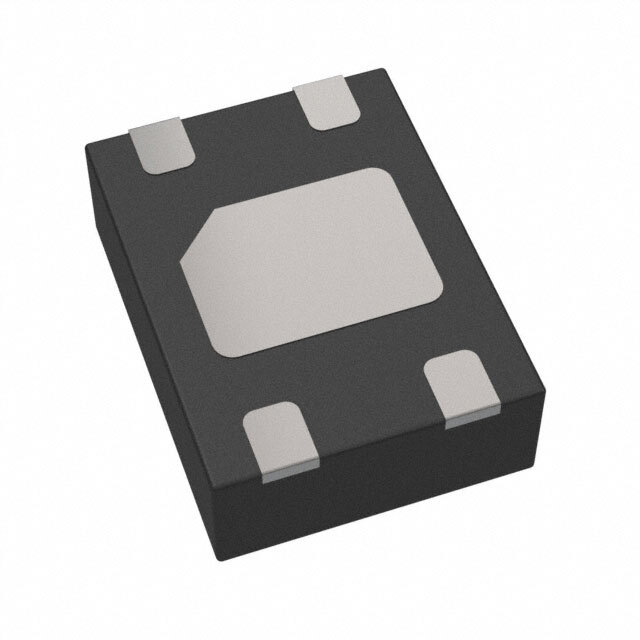

• Package / Case: SOT-553

The AH1893-FA-7 is available in a small and thin SOT-553 package, making it suitable for space-constrained applications. Its robust design ensures that the device operates effectively across a wide temperature range, from -40°C to +85°C, which is critical for a variety of environmental conditions. The open-drain output allows for easy interfacing with other circuitry, and the built-in reverse blocking diode protects the device from reverse supply conditions, enhancing system reliability.

Diodes Incorporated's commitment to quality is reflected in the AH1893-FA-7 Hall effect switch IC, providing designers with a dependable and efficient solution for their magnetic sensing requirements.
