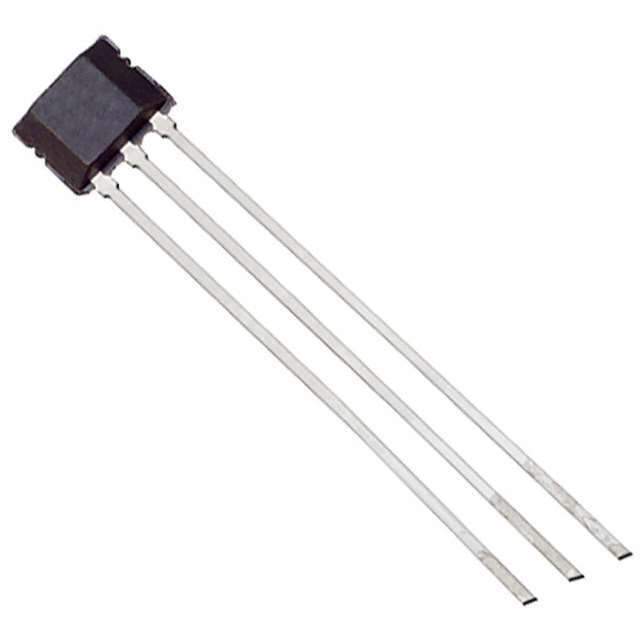

TLE4945-2L Real Image
Same model may have multiple batches, images only for reference.

TLE4945-2L

Part No TLE4945-2L
Manufacturer Infineon Technologies
Catalog Magnetic Sensors - Switches (Solid State)
Description MAGNETIC SWITCH BIPOLAR PSSO-3-2
Datasheet
TLE4945-2L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Infineon Technologies
Packaging AMMO PACKAGE
Status Obsolete(EOL)
Purpose Bipolar Switch
Technology Hall Effect
Polarization South Pole
Sensing Range 6mT Trip, -6mT Release
Testing Conditions 25°C
Supply Voltage - Operating 3.8 V to 24 V
Current - Supply (Max) 8mA
Current - Output (Max) 100mA
Output Type Open Collector
Features Temperature Compensated
Temperature Range - Operating -40°C to 150°C (TJ)
Case / Package P-SSO-3-2
Win Source Part Number 1108694-TLE4945-2L
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian TLE4945-2L CAD Model

Description

The Infineon Technologies TLE4945-2L is a temperature-compensated Hall effect bipolar switch.

  • Output type: Open collector
  • Polarization: South pole detection
  • Maximum supply current: 8mA
  • Maximum output current: 100mA
  • Sensing range: 6mT trip and -6mT release
  • Package: AMMO PACKAGE
  • Case/Package: P-SSO-3-2
  • Temperature range: -40°C to 150°C (TJ)
