Same model may have multiple batches, images only for reference.

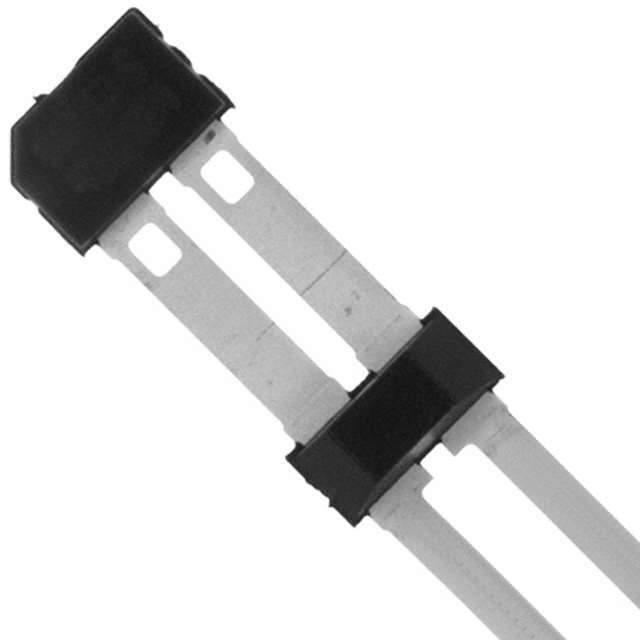

TLE49421HALA1 Real Image
Same model may have multiple batches, images only for reference.

TLE49421HALA1

Part No TLE49421HALA1
Manufacturer Infineon Technologies
Catalog Magnetic Sensors - Linear, Compass (ICs)
Description MAG SWITCH SPEC PURP SSO-2-2 / Digital Switch Special Purpose Current Source Hall Effect PG-SSO-2-2
Datasheet
TLE49421HALA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Magnetic Sensors - Switches (Solid State)
Mfr Infineon Technologies
Series Automotive, AEC-Q100
Package Tape & Box (TB)
Function Special Purpose
Technology Hall Effect
Voltage - Supply 4.5V ~ 20V
Current - Supply (Max) 16.8mA
Output Type Current Source
Mounting Type Through Hole
Supplier Device Package PG-SSO-2-2
Package / Case 2-SIP, SSO-2-2
Base Product Number TLE49421
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names INFINFTLE49421HALA1,TLE4942-1-ND,TLE49421HALA1TB,SP000015067,TLE4942-1,2156-TLE49421HALA1
Standard Package 2,000
Win Source Part Number 1099704-TLE49421HALA1
Ultra Librarian 3D Model Ultra Librarian TLE49421HALA1 CAD Model

Description

The Infineon Technologies TLE49421HALA1 is a Hall Effect magnetic sensor switch with a voltage supply range of 4.5V ~ 20V and a maximum current supply of 16.8mA.

  • Package / Case: 2-SIP, SSO-2-2
  • Sensing Range: -
  • Category: Sensors, Transducers
  • Sensor Type: Special Purpose
  • MSL (Moisture Sensitivity Level): 1 (Unlimited)
  • REACH Status: Unaffected
