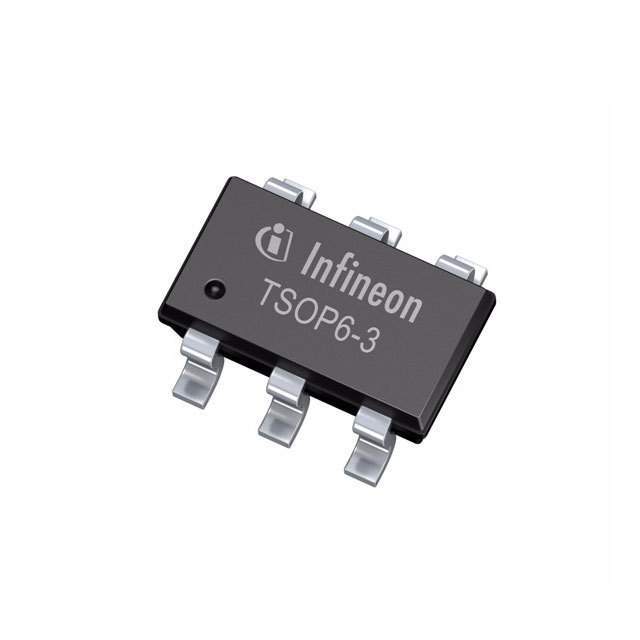

Same model may have multiple batches, images only for reference.
TLE4917 Infineon Technologies
Same model may have multiple batches, images only for reference.

TLE4917

Part No TLE4917
Manufacturer Infineon Technologies
Catalog Magnetic Sensors - Switches (Solid State)
Description MAGNETIC SWITCH OMNIPOLAR 6TSOP
Datasheet
TLE4917 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Infineon Technologies
Packaging Reel - TR
Purpose Omnipolar Switch
Technology Hall Effect
Polarization Either
Sensing Range ±7mT Trip, ±2.2mT Release
Testing Conditions 25°C
Supply Voltage - Operating 2.4 V to 5.5 V
Current - Supply (Max) 2.5mA
Current - Output (Max) 2mA
Output Type Open Drain
Features Temperature Compensated
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 6-TSOP
Win Source Part Number 052257-TLE4917
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name TLE 4917
Introduction Date July 09, 2001
ECCN EAR99
Halogen Free Not Compliant
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian TLE4917 CAD Model

Description

The Infineon Technologies TLE4917 is a temperature-compensated Hall effect sensor designed for sensors and transducers.

  • Mounting Technology: SMD (SMT)
  • Output Type: Open Drain
  • Sensing Range: ±7mT Trip, ±2.2mT Release
  • Temperature Range (TA): -40°C to 85°C
  • Supply Voltage: 2.4 V to 5.5 V
  • Package: 6-TSOP
  • Purpose: Omnipolar Switch
  • Estimated EOL Date: Obsolete
  • Halogen-Free Compliant: No
