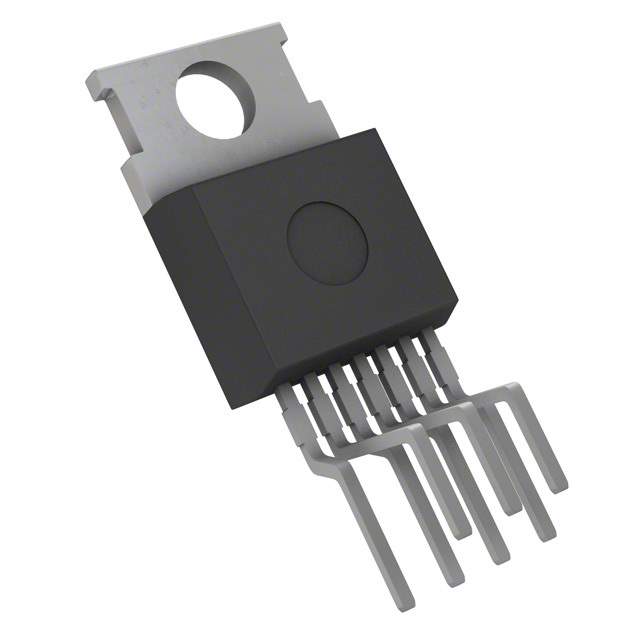

TDA21201-S7 Real Image
Same model may have multiple batches, images only for reference.

TDA21201-S7

Part No TDA21201-S7
Manufacturer Infineon Technologies
Catalog PMIC - Full, Half - Bridge Drivers
Description Integrated Switch(MOSFET Driver and MOSFETs)
Datasheet
TDA21201-S7 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Infineon Technologies
Packaging Tube
Part Status Obsolete(EOL)
Output Configuration Half Bridge
Applications Synchronous Buck Converters
Interface PWM
Load Type Inductive
Technology Power MOSFET
Rds On (Typ) 4.8 mOhm LS, 13.3 mOhm HS
Output Current per Channel 30A
Operating Supply Voltage 9 V ~ 15 V
Voltage - Load 9 V ~ 15 V
Operating Temperature Range -25°C ~ 125°C (TJ)
Features Bootstrap Circuit
Fault Protection Over Temperature, Shoot-Through, UVLO
Mounting Style Through Hole
Package TO-220-7 (Formed Leads)
Manufacturer Package PG-TO220-7-230
RoHS State Request Verification
Win Source Part Number 1265941-TDA21201-S7
Manufacturer Homepage www.infineon.com
Popularity Medium
Supply and Demand Status Limited
Family Name TDA21201
Introduction Date April 26, 2002
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian TDA21201-S7 CAD Model

Description

The TDA21201-S7 is a high-performance MOSFET from Infineon Technologies. It is designed to provide reliable and efficient performance in a variety of applications, including synchronous buck converters.

  • Supply and Demand Status: limited
  • Popularity: medium
  • Manufacturer Homepage: www.infineon.com
  • Win Source Part Number: 1265941-TDA21201-S7
  • Package: TO-220-7 (Formed Leads)
  • Operating Temperature Range: -25°C ~ 125°C (TJ)
  • Features: bootstrap circuit, PWM interface, and various fault protections, including over temperature, shoot-through, and UVLO.
