Same model may have multiple batches, images only for reference.

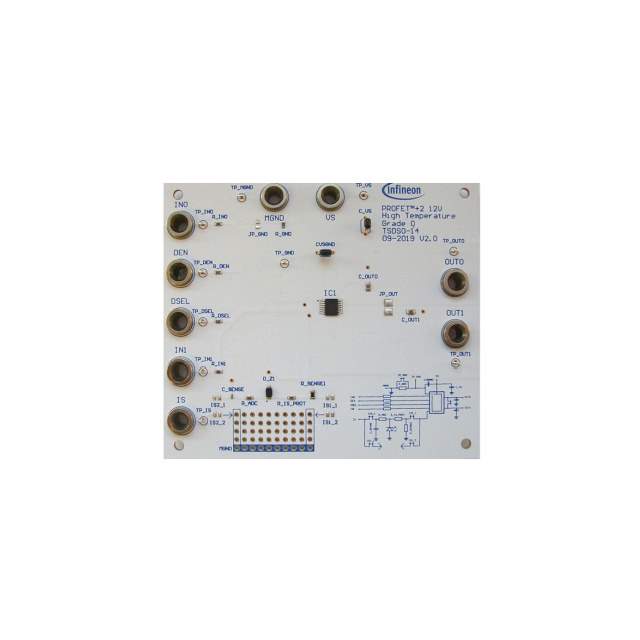

SHIELDBTS70041EPZTOBO1 Real Image
Same model may have multiple batches, images only for reference.

SHIELDBTS70041EPZTOBO1

Part No SHIELDBTS70041EPZTOBO1
Manufacturer Infineon Technologies
Catalog Evaluation Boards - Expansion Boards
Description PROFET+2 12V GRADE0 BTS7004-1EP / BTS7004-1EPZ Switch Power Management Platform Evaluation Expansion Board
Datasheet
SHIELDBTS70041EPZTOBO1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Development Boards, Kits, Programmers>Evaluation Boards - Expansion Boards, Daughter Cards
Mfr Infineon Technologies
Series PROFET™+2
Package Bulk
Type Power Management
Function Switch
Utilized IC / Part BTS7004-1EPZ
Contents Board(s)
Base Product Number SHIELDBTS70041
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
Other Names SP005344711,448-SHIELDBTS70041EPZTOBO1
Standard Package 1
Win Source Part Number 1015885-SHIELDBTS70041EPZTOBO1
Ultra Librarian 3D Model Ultra Librarian SHIELDBTS70041EPZTOBO1 CAD Model

Description

The SHIELDBTS70041EPZTOBO1 is a development board designed for evaluating the BTS7004-1EPZ power management switch.

  • Series: PROFET+2
  • Packaging: Bulk
  • Standard Package: One
  • Utilized IC or Part: BTS7004-1EPZ
  • Suggested Programming Environment: Not Specified
  • Interconnect System: Not Specified
  • REACH: Unaffected
  • Manufacturer: Infineon Technologies
  • Other Names: SP005344711 and 448-SHIELDBTS70041EPZTOBO1
