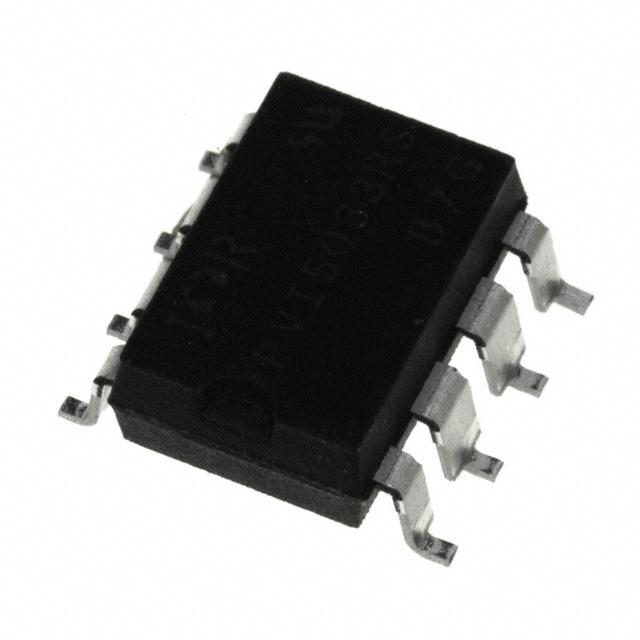

The Infineon PVI5013RSPBF is a galvanically isolated high current single channel IGBT driver. It is designed to drive IGBTs (Insulated Gate Bipolar Transistors) and MOSFETs in various power electronic applications, providing isolation between the control circuitry and the high-power switching stage.

Applications

• Motor Drives: Used in industrial motor control applications, including AC drives, servo drives, and variable frequency drives (VFDs).
• Power Supplies: Implemented in uninterruptible power supplies (UPS), switched-mode power supplies (SMPS), and other power conversion systems.
• Solar Inverters: Employed in solar power inverters to drive the switching elements that convert DC power from solar panels into AC power for grid connection.
• Welding Equipment: Utilized in welding machines to control the high-current switching required for welding processes.
• Induction Heating: Found in induction heating systems to drive the power transistors that generate the high-frequency alternating current for heating.

Features

• Galvanic Isolation: Provides robust electrical isolation between the input and output stages, ensuring safety and preventing ground loops.
• High Output Current: Capable of delivering high gate current to drive large IGBTs and MOSFETs efficiently.
• Under-Voltage Lockout (UVLO): Includes UVLO protection to prevent IGBTs from operating in an unsafe condition during low supply voltage.
• Short-Circuit Protection: Incorporates short-circuit protection to protect the IGBTs and the driver itself from damage in case of a short-circuit event.
• Desaturation Detection: Features desaturation detection to monitor the IGBT voltage and detect fault conditions.
• Soft Turn-Off: Allows for soft turn-off of the IGBT to reduce voltage overshoot and improve overall system reliability.

Benefits

• Enhanced Safety: Galvanic isolation ensures a high level of safety by preventing electrical interference between the control and power stages.
• Improved System Reliability: Built-in protection features such as UVLO, short-circuit protection, and desaturation detection enhance the overall reliability of the power electronic system.
• Efficient Power Switching: High output current capability enables efficient switching of IGBTs and MOSFETs, minimizing power losses and improving system performance.
• Reduced Design Complexity: Integrated protection features simplify the design of power electronic systems and reduce the number of external components required.
• Optimized Performance: Soft turn-off functionality minimizes voltage overshoot and ringing, leading to improved system performance and reduced EMI.
• Pb-Free: RoHS compliant.

Additional Details

The PVI5013RSPBF typically uses an advanced isolation technology to achieve high isolation voltage and robust noise immunity. It requires a dedicated power supply for the output stage to provide the necessary gate drive voltage and current. The input side is compatible with standard logic levels, making it easy to interface with microcontrollers and other control circuits. This IGBT driver's comprehensive protection features and high-performance capabilities make it well-suited for demanding power electronic applications where reliability and efficiency are critical.

The PVI5013RSPBF from Infineon Technologies provides a reliable and efficient solution for driving IGBTs and MOSFETs in a wide range of applications, contributing to improved system performance and safety.
