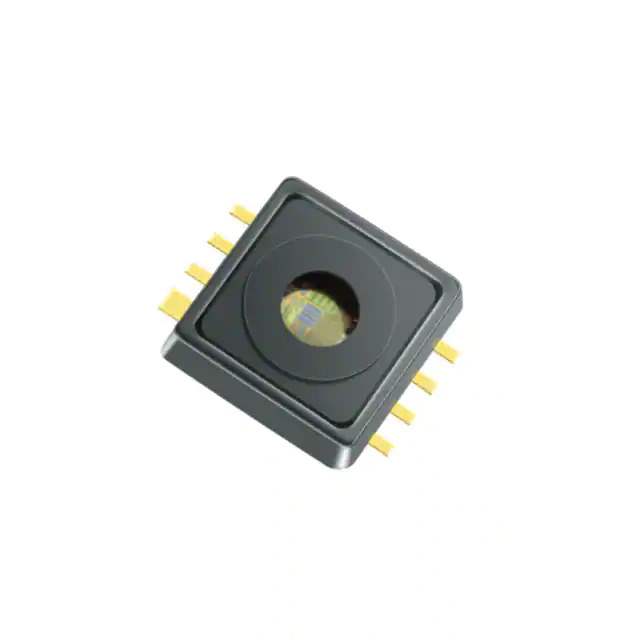

KP276A1201XTMA1 Real Image
Same model may have multiple batches, images only for reference.

KP276A1201XTMA1

Part No KP276A1201XTMA1
Manufacturer Infineon Technologies
Catalog Pressure Sensors, Transducers
Description SENSOR 58.02PSIA 12BIT DSOF8
Datasheet
KP276A1201XTMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Pressure Sensors, Transducers
Mfr Infineon Technologies
Package Tape & Reel
Product Status Active
Pressure Type Absolute
Operating Pressure 1.45 ~ 58.02PSI (10kPa ~ 400kPa)
Output Type SENT
Output 12 b
Accuracy ±0.77%
Voltage - Supply 4.5V ~ 5.5V
Port Style No Port
Features Temperature Compensated
Termination Style SMD (SMT) Tab
Temperature Range - Operating -40°C ~ 150°C
Mounting Type Surface Mount
Package / Case 8-SMD Module
Supplier Device Package PG-DSOF-8-162
Base Product Number KP276A1201
Standard Package 1,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1067693-KP276A1201XTMA1
Ultra Librarian 3D Model Ultra Librarian KP276A1201XTMA1 CAD Model

Description

The Infineon Technologies KP276A1201XTMA1 is a pressure sensor.

  • Feature: Temperature Compensation
  • Voltage Supply: 4.5V to 5.5V
  • Output Type: SENT (Single Edge Nibble Transmission)
  • Output Bits: 12-bit
  • Accuracy: ±0.77%
  • Operating Pressure Range: 1.45 to 58.02 PSI (10kPa to 400kPa)
  • Mounting: Surface Mountable
  • Package: 8-SMD module
  • Operating Temperature Range: -40°C to 150°C
