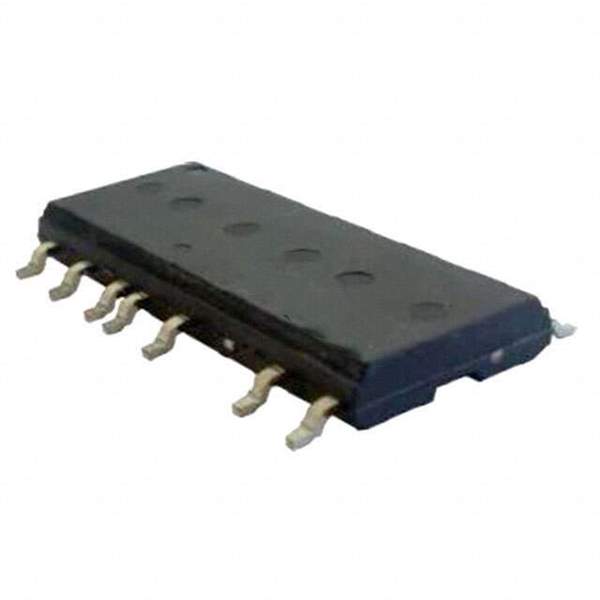

IRSM505-035PA Real Image
Same model may have multiple batches, images only for reference.

IRSM505-035PA

Part No IRSM505-035PA
Manufacturer Infineon Technologies
Catalog PMIC - Full, Half - Bridge Drivers
Description IC MOTOR DRIVER 500V 23SOP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Infineon Technologies
Packaging Tube
Output Configuration Half Bridge (3)
Applications AC Motors
Interface Logic
Load Type Inductive
Technology UMOS
Rds On 1.8Ohm
Current - Output / Channel 2.1A
Current - Peak Output 15A
Supply Voltage (V) 13.5V ~ 16.5V
Load Voltage (V) 400V (Maximum)
Temperature Range - Operating -40°C ~ 150°C
Features Bootstrap Circuit
Fault Protection UVLO
Mounting Style SMD
Manufacturer Package 32-PowerSMD Module, 23 Leads
Supplier Device Package 23-SOP
Manufacturer Pack Quantity 240
MSL Level 3 (168 Hours)
Win Source Part Number 758850-IRSM505-035PA
Popularity Low
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian IRSM505-035PA CAD Model

Description

The Infineon Technologies 758850-IRSM505-035PA is an integrated circuit designed for use in AC motors.

  • Output configuration: Half-bridge (3 channels)
  • Interface: UMOS technology
  • Current output per channel: 2.1A
  • Fault protection: UVLO
  • Peak output current: 15A
  • Package: 23-SOP
  • Popularity: Low
  • Supply and demand status: Limited
  • Manufacturer pack quantity: 240
  • MSL level: 3 (168 hours)
  • Supply voltage range: 13.5V to 16.5V
  • Load voltage (maximum): 400V
  • Rds On: 1.8Ohm
