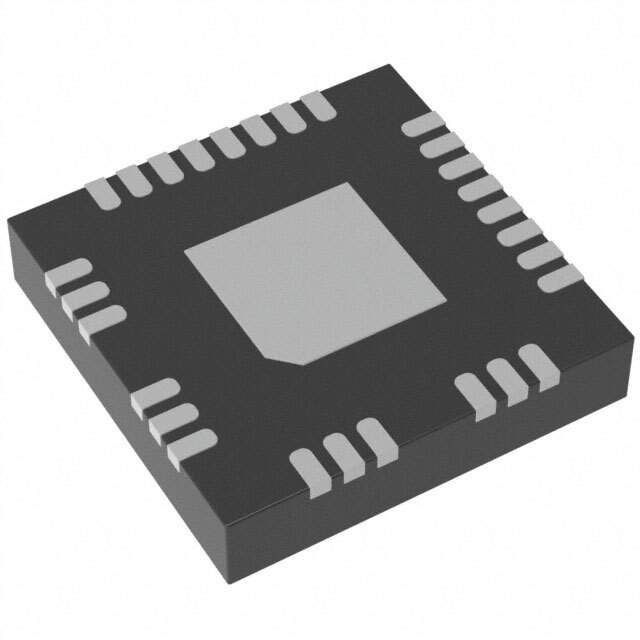

IRS2334MPBF Real Image
Same model may have multiple batches, images only for reference.

IRS2334MPBF

Part No IRS2334MPBF
Manufacturer Infineon Technologies
Catalog PMIC - Gate Drivers
Description IC GATE DRVR HALF-BRIDGE 28MLPQ / Half-Bridge Gate Driver IC Non-Inverting 28-MLPQ (5x5)
Datasheet
IRS2334MPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Gate Drivers
Mfr Infineon Technologies
Package Tray
Product Status Obsolete
Driven Configuration Half-Bridge
Channel Type 3-Phase
Number of Drivers 6
Gate Type IGBT, N-Channel MOSFET
Voltage - Supply 10V ~ 20V
Logic Voltage - VIL, VIH 0.8V, 2.5V
Current - Peak Output (Source, Sink) 200mA, 350mA
Input Type Non-Inverting
High Side Voltage - Max (Bootstrap) 600 V
Rise / Fall Time (Typ) 125ns, 50ns
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting SMD (SMT)
Package / Case 28-VFQFN Exposed Pad
Supplier Device Package 28-MLPQ (5x5)
Base Product Number IRS2334MPBF
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names SP001548774
Standard Package 624
Win Source Part Number 1065666-IRS2334MPBF
Ultra Librarian 3D Model Ultra Librarian IRS2334MPBF CAD Model

Description

The Infineon Technologies IRS2334MPBF is a 3-phase gate driver IC that is obsolete.

  • Input Type: Non-inverting
  • Driven Configuration: Half-bridge
  • Voltage Supply: 10V to 20V
  • Peak Output: 200mA to 350mA
  • Popularity: Low
  • Package: 28-VFQFN exposed pad
