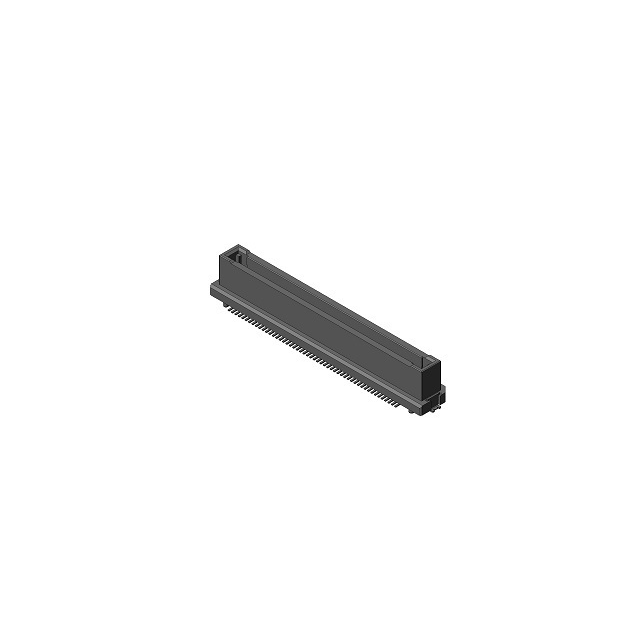

AX01R100VABBR600

Part No AX01R100VABBR600
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description RIGID SIDE B2B CONNECTOR, 100 PO / 100 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
Datasheet
AX01R100VABBR600 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr JAE Electronics
Series AX01
Package Tape & Reel
Connector Type Plug, Outer Shroud Contacts
Number of Positions 100
Pitch 0.025" (0.64mm)
Number of Rows 2
Mounting Type Surface Mount
Features Board Guide, Solder Retention
Contact Finish Gold
Contact Finish Thickness 4.00µin (0.100µm)
Height Above Board 0.260" (6.60mm)
Base Product Number AX01R100
Standard Package 600
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1349345-AX01R100VABBR600
Ultra Librarian 3D Model Ultra Librarian AX01R100VABBR600 CAD Model

Description

The JAE Electronics AX01R100VABBR600 is a 100-position rectangular connector array designed for board-to-board interconnects.

  • Number of Positions: 100
  • Pitch: 0.025" (0.64mm)
  • Features: Board Guides and Solder Retention
  • Connector Type: Plug
  • Contact Type: Outer Shroud
  • Number of Rows: Two
  • Contact Finish: Gold
  • Contact Finish Thickness: 4.00µin (0.100µm)
  • Mounting Type: Surface Mount
  • Height Above Board: 0.260" (6.60mm)
